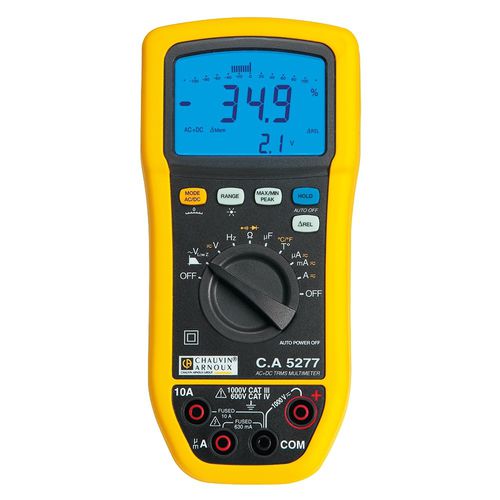

Digital multimeter CA 5277

portablecat IIIcat IV

Description The comprehensive C.A 5277 multimeter is equipped with all the functions needed for testing, maintenance and inspections With its high-speed 12-bit converter, the C.A 5277 performs 5 TRMS AC+DC measurements per second with high accuracy whatever the form or type of the signal. • - TRMS AC+DC measurement of voltage and current • - 12-bit converter • - 5 measurements / second • - CAT IV 600V / CAT III 1000V • - IP54 • - Double 6,000-count backlit display • - Bi-mode bargraph with 61+2 segments (full scale/central zero) • - Automatic or manual range selection • - VLowZ low-impedance voltage measurement with low-pass filter • - 1,000 V / 10 A • - 10 µV resolution • - Current from 1 µA • - Measurement of ionization currents • - Resistance / audible continuity • - Temperature / Capacitance • - μA range for ionization current measurement • - Min / MAX (100 ms) • - Peak+ / Peak- (1 ms) • - Differential measurements (&Delta ;X) et RELative (&Delta ;X/X%) • - 3-year warranty
