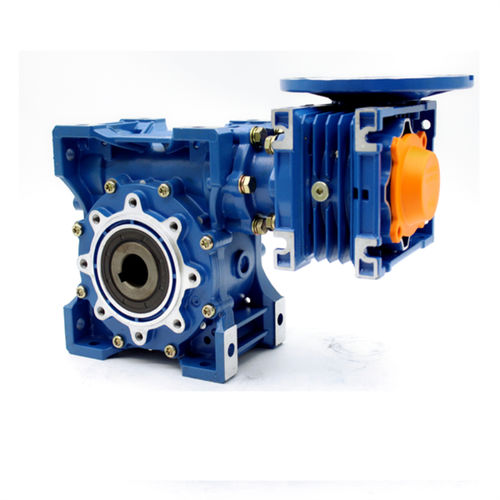

Double stage gearbox CYRV50-CYRW75wormright anglevertical output shaft
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- vertical output shaft
- Number of stages
- double stage
- Performance
- high-efficiency, low-noise, high-performance, high-torque, maintenance-free, low-backlash, high-speed, high-power, high load capacity
- Applications
- drive, transmission, for machinery, for robots, for industrial applications, for roller mills, for material handling equipment, for automation, for vehicles, for lifting applications, for conveyors, building, for mining equipment, for machines, for automobiles, for stepper motors, for textiles, for the metallurgical industry, for servo motors, turbine, for railway applications, wheel, for mining applications, for wind turbine, for vertical mills, for milling applications, for the chemical industry, for heavy-duty applications, machine, for elevators, for elevators, for heating, for medical devices
- Other characteristics
- compact, flange, industrial, high-quality, for motors, for the sugar industry, power generation, for food packaging, transport, vertical, cutting, aluminum, with flange, mounted, for grinding machines, combined, shaft-mounted, for automotive applications, for pumps, for mixers, for heavy loads, for loaders, for packaging machines, for robotics, powder, for machine tools, mechanical transmission, for injection molding machines, for continuous operation, for tire manufacturing, electronic equipment
- Gear ratio
2,400 unit
Description
Double stage worm gearbox CYRV50-CYRW75
Key features
• Factory outlet
• Speed ratio : 2400:1
• Input : ∅14
• Input flange: 71B5
• Die-cast aluminum alloy housing
• Worm wheel adopts high quality Tin Bronze
• Certification: RoHS/CE/IAF/CNAS /ISO9001/45001/14001
• Bipolar reducers: available
• Flange: round or square
• Mounting orientation: AS1 AS2 BS1 BS2 VS1 VS2 PS1 PS2 see attached photos
• Can be customized according to customer needs
• Delivery time: 7 days
• Approximate net weight: 11.75 Kgs
Key benefits
• Strong self-locking capability
• Simple structure,large transmission ratio,wide range of kinds of industrial applications
• Good heat dissipation
• Low temperature rise
• Low noise, smooth operation
• Long service life and more durability
• Energy saving and high efficiency
• Can be installed in 8 positions AS1 AS2 BS1 BS2 VS1 VS2 PS1 PS2 see attached
photos
• Built-in fully synthetic lubricant, no breather plug, fully sealed and free maintenance
