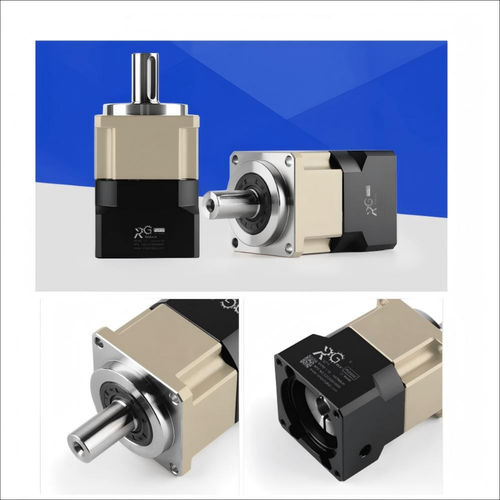

Planetary gear reducer PGH060helical gearcoaxialkeyed shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical gear
- Shaft orientation
- coaxial
- Shaft configuration
- keyed shaft
- Torque
- 20 - 50 Nm, 50 - 100 Nm
- Mounting
- flange-mounted
- Configuration
- compact
- Number of stages
- single-stage, two-stage
- Performance
- high-precision, high-performance, low-noise, high-efficiency, low-backlash, maintenance-free, high-torque
- Applications
- for vehicles, for servo motors, drive, machine, for electric motors, for industrial applications, for conveyor, for machines, for machine tools, for material handling equipment, for milling applications
- Power
Max.: 0.75 kW
(1.02 hp)Min.: 0.1 kW
(0.14 hp)- Gear ratio
Max.: 100 unit
Min.: 3 unit
- Weight
1.3 kg, 2 kg
(2.87 lb, 4.41 lb)
Description
Chelsea （HK）Industrial Technology Co.,Limited. which is a professional leading gearboxes manufacture and system solutions with 31 years history since 1993 covering total area of 8.5 Acres and the workshop buildings 322,800sq.ft in China . I am the sales manager of our International Trade Dept.
Planetary gear reducer PHG060 technical parameters:
1.Model: PGH060
2. Speed ratio range: 3:1, 4:1, 5:1, 7:1 ,8:1 ,10:1 ,15:1 ,20:1, 25:1 ,30:1 ,40:1 ,50:1 ,
60:1 , 70:1 ,100:1
3. Planetary type: Single stage L1 and Double stage L2
4. Single stage gear reducer input size:14mm/19mm
5. Double stage gear reducer input size:8mm/11mm
6. Output size: 16mm
7. Input speed: 5000rpm---10000rpm
8.Output torque: 37N.m---55N.m
9.Suitable for motor power: 0.1kW,0.2kW,0.4kW,0.75kW
10.Planetary Accuracy:
P0: L1 ≤2 Arc minute，L2≤4 Arc minute
P1: L1 ≤4 Arc minute，L2≤6 Arc minute
P2: L1 ≤6Arc minute，L2≤8 Arc minute
11. Default delivery accuracy: P2,if need more precision grade,please note the service.
12. Coaxial layout form
13.Housing material: 20 CrMnTi
14. Worm gear material : 20 CrMnTi
15. Connected flange : Aluminium
