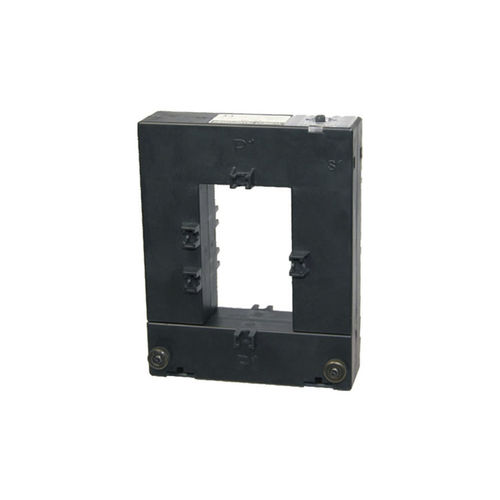

Transformer current sensor DP-X

ACmonitoring

DP-X Split Core Current Transformer has been designed for current measurement, monitoring & protection for electrical wiring & equipment. This split core current sensor is for the rated frequency of 50HZ voltage below 0.66KV measuring current power and relay protection. It is widely used in Circuit systems or grid modification systems, Power Distribution, various industrial applications, Energy Management Systems, and so on. • Wide range of sizes to accommodate all the existing installation • Wide inner window, allowing clamping of cables or bus-bars • 2 built-in fixing methods: Panel/Busbar • Primary current from 5A to 5000A • A standard secondary output rating of 5 amps • Revenue grade accuracy meets IEC61000-1 class 0.5 / 1.0 • Rated Output : 5A or 1A • Working voltage : 1M ohm @ 500V • Operating Amb. Temperature : -15°C to 65°C • Accuracy : 1.0 class or 0.5 class • IEC 60044-1 • Construction : ABS or PC • UV94-0
