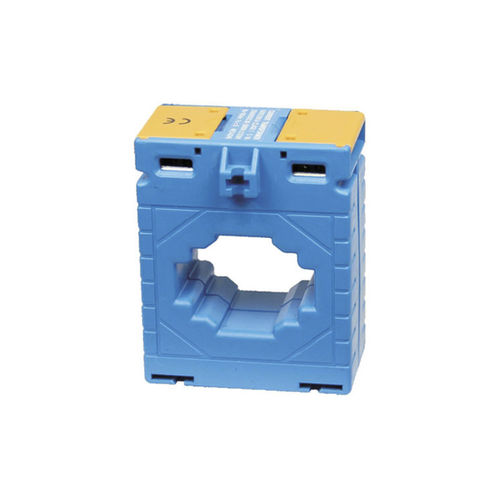

Transformer current sensor MES-X

DIN railACvoltage

MES-X Solid Core Current Transformer is a range of low-cost molded case 5A Current Transformers. This solid core CT has an integral hinged plate terminal cover that will accommodate cables up to 41mm in diameter and 35mm wide. The MES-X solid core current transformer is supplied with a DIN-rail mounting clip and mounting feet. 9 models of solid core current transformers are available. • Silicon steel core; • Secondary side 5A, optional 1A; • Built-in hinged terminal cover; • Primary Current from 5A to 3000A; • Three built-in fixing methods: busbar support mounting, din rail mounting, and meatanic bracket panel mounting; • This ac current transformer is smaller than the general model in volume; • The solid core CT matches the requirements in space-limited panels. • Rated Output : 5A or 1A • Working voltage : 1M ohm @ 500V • Operating Amb. Temperature : -15°C to 65°C • Accuracy : 1.0 class or 0.5 class • IEC 60044-1 • Construction : ABS or PC • UV94-0
