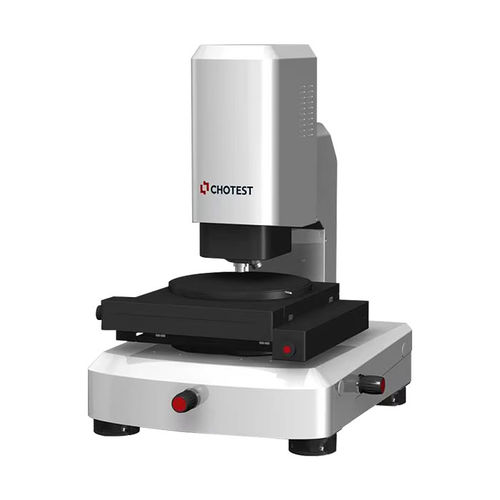

Optical surface profiler WT3200

3Dstylusconfocal

The Hybrid 3D optical profilometer Superview WT series is usedd for sub nanometer measurement of surfaces of various precision components and materials. It integgrates the performance characteristics of two high-precision 3D measuring instruments, white light interferometer and confocal microscope, and can perform non-contact scanning of the samples surface tthen re-establish 3D surface image. When measuring the ultra smooth and transparent surfaces, whhite light interferometry mode can be used to obtain high-precision and distortion-free images, and analyzeparameters such as roughness. When measuring coarse surfaces with sharp angle featuires, confocal microscopy mode can recon struct large angle 3D topography images, and 2D & 3D parameters reflecting surface quality are obtained by data processing and analysis of surface 3Dimages through software.
