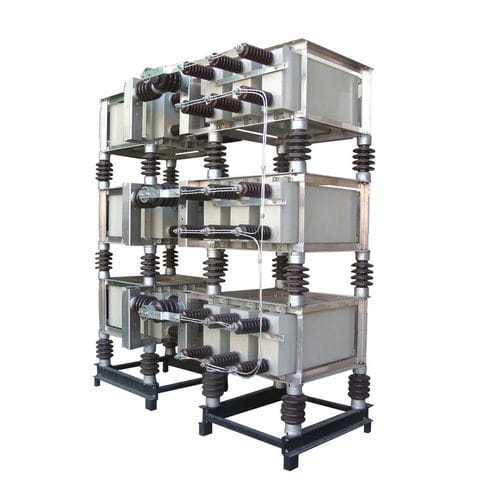

Open-rack shunt capacitor bank BMFC3-066-120power factor
Add to favorites
Compare this product
Characteristics
- Type
- open-rack shunt
- Electrical characteristics
- power factor
Description
The capacitor banks in frames are composed of the following:
Capacitors
Unbalance transformers
After 36 kV, the capacitor banks are designed with a frame per phase, with the adequate support insulators of the insulation level, in accordance with the network's service voltage.
Optional:
Choke REACTORS RMV
Quick discharge REACTORS
Applications
The capacitor banks in frames are common in distribution substations and, particularly, in High Voltage applications. They can be used in any type of installation, but the use of enclosures or lifting support units is required to avoid the contact with active parts.
