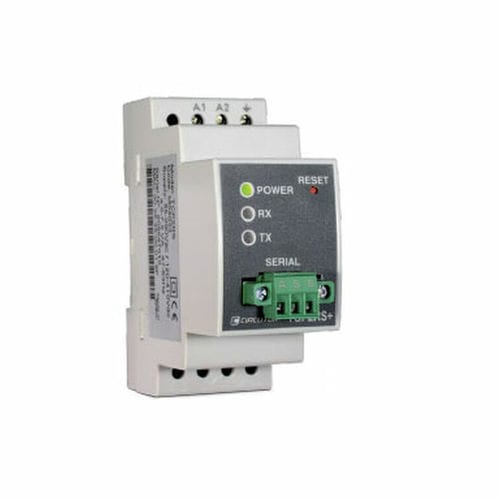

Protocol converter TCP2RS+

communicationsEthernetRS232

TCP2RS+ is a gateway for the conversion of the Ethernet physical medium to RS232 or RS485, or vice versa. The unit is fitted with a Web Server, from which the user can fully parametrize the device configuration parameters. Powerful TCP2RS+ is a gateway developed entirely in the CIRCUTOR factory, incorporating the latest Ethernet network integration technology with high reliability, stability and robustness of use. TCP2RS+ can work in fixed IP mode, and even in DHCP mode through name identification. Versatile TCP2RS+ is designed to work in multiple communication modes by simply selecting the desired option through the configuration Web Server. In master-slave function, the unit’s Ethernet port can work in UDP or TCP mode to a configurable port, or in Modbus/TCP to port 502. In addition, the unit has routing functions to develop RS232/485 topologies on existing Ethernet infrastructures. The selection of the network protocol series (RS232 or RS485) and other network parameters is done through the configuration web site. Industrial TCP2RS+ is the only gateway on the market with multi-range power supply and a DIN-type enclosure with as few as 2 modules. Its switching power supply allows you to power the device from 85 to 290 volts in alternating current, and from 120 to 410 volts in direct current. Easy IP programming through the IP setup program (Windows) Easy access to the configuration Web Server once its IP is known RS232 or RS485 interface can be selected through Internet Explorer Multiple communications protocols: UDP, TCP, Modbus/TCP or routing functions Ethernet connection RJ45 10/100BaseTX
