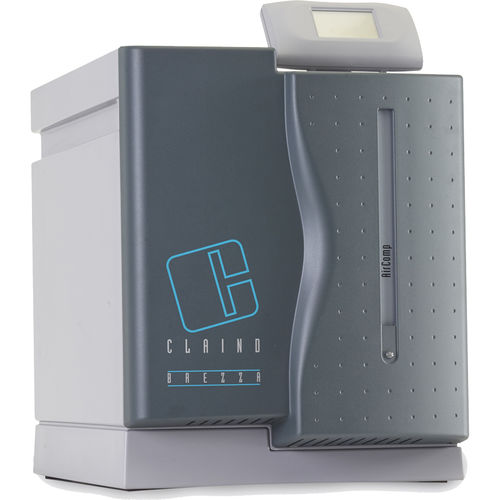

Zero air generator AirComp

laboratorycompact

Designed for GC and Atomic Absorption GAS TYPE compressed air PURITY - CONFIGURATION tower - Provides 20 Nl/min of compressed from an 8 bar Oil Free compressor - Possible parallel connection up to 4 stackable tower configuration generators - Quiet: noise level reduced to a minimum thanks to special soundproof and anti-vibration devices - CPU with Touch Screen Display that can be linked to the generators with CAN-BUS, allowing monitoring of the operating status and menu reading with the maintenance status, the alarm report and functional parameters FLOW RATE - 20 Nl/min ± 2 Nl/min up to 2000 m from the sea TECHNOLOGIES EMPLOYED - Oil free piston compressor OUTPUT PRESSURE - 0÷8 bar ± 3% (± 240 mbar) AIR OUTPUT CHARACTERISTICS - Particulate = 0,01 mm Moisture = -15° C dew point ATP ELECTRICAL SUPPLY - 220 Vac ±10% 50 Hz 550 VA INDEX OF PROTECTION - IP20 NOISE - < 55 dBA OPERATING TEMPERATURE - 5°C - 40°C/40°F - 100°F ENVIRONMENTAL HUMIDITY - max 90% without condensation DIMENSIONS - Height: 40 cm + 7 cm (base) /15.8” + 2.8” Width: 38 cm/14.9” Depth: 53 cm/20.8” WEIGHT - 25 kg/55 lbs PNEUMATIC CONNECTIONS - Purified air output: G 1/8” female
