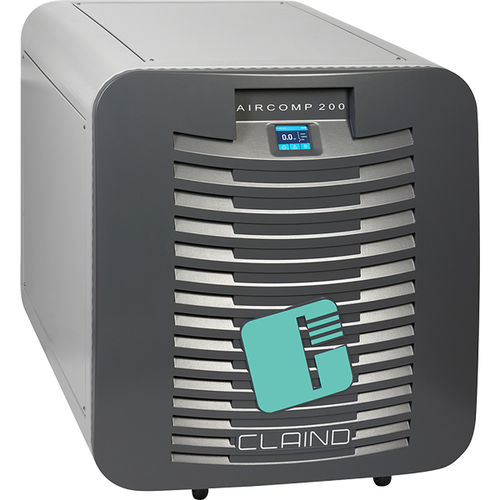

Designed to power Nitrogen generators and GC
GAS TYPE
compressed air
PURITY
-
CONFIGURATION
-
- Provides up to 190 Nl/min of compressed with 9.5 bar pressure
- Scroll Oil Free Compressor
- Monophase power supply 230 Vac 50/60 Hz
- Internal tank and possibility of adding an external one
- Integrated with MOD-BUS and MQTT communication protocols that allow remote controls from PC or smart phone, and monitoring of the generator’s functional parameters in real time
- Silent: noise level reduced to a minimum thanks to special soundproof and antivibration devices
- Speed controlled electronically from thecompressor head to save energy and reducemaintenance
- Output Dew Point up to - 60°C
- All control devices are compact and complete
PRODUCT CODE
433.30.0000
FLOW RATE
190 Nl/min (210 l/min FAD) @ 7 bar
TECHNOLOGIES EMPLOYED
Oil free SCROLL compressor
OUTPUT PRESSURE
6 ÷ 9,5 bar
AIR OUTPUT CHARACTERISTICS
Particulate = 0,01 mm
Moisture up to -60°C Dew point ATP @ 9,5bar 50Nl/min
ELECTRICAL SUPPLY
230 Vac ± 10% 50/60 Hz 2,5kW
INDEX OF PROTECTION
IP20
NOISE
Minimum: 54 dBA Medium: 58 dBA
OPERATING TEMPERATURE
5°C - 40°C/40°F - 100°F
STORAGE TEMPERATURE
5°C - 50°C/40°F - 125°F
ENVIRONMENTAL HUMIDITY
max 90% without condensation
MAX ALTITUDE
Tested up to 2000 m from the sea level
DIMENSIONS
L x D x H cm 68 x 83 x 79,5 27,8” x 32,5” x 31,5”
WEIGHT
148 kg/330 lbs
ENVIRONMENT HEAD DISPERDED
2340 J/sec
PNEUMATIC CONNECTIONS
N. 2 Purified air output: G1/2” female
Condensate drain PVC pipe Øe 9 mm and collection tank
ELECTRICAL CONNECTION
5 mt power supply cable; Plug IEC309, 2-poles plus blue earth 32° IP44 according to standards IEC 60309-1 and IEC 60309-2
