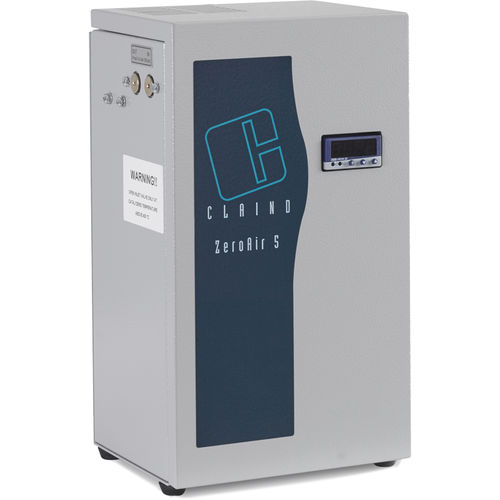

Floor-standing zero air purifier Zero Air

filterfor gas chromatography

Designed for GC and FID GAS TYPE zero air PURITY - CONFIGURATION bench-top or wall-mounting - Available in the double version for 5 and 20 Nl/min - Double installation capability: on workbench or wall - Adapted to support from 14 up to 55 FID - Catalyzer temperature indicator - Excellent for FID and FPD, guarantees a clean base line with no fluctuations - High efficiency Platinum Palladium HC system for complete hydrocarbon (HCT < 0.1 ppm) removal at low catalysis temperatures for a stable, noise-free base line - Can be integrated with the dedicated AirComp compressor FLOW RATE - ZeroAir 5: 5 Nl/min ± 10% a 2000 m asl ZeroAir 20: 20 Nl/min ± 10% a 2000 m al TECHNOLOGIES EMPLOY - Platinum-Palladium catalytic reactor EFFICIENCY - Total hydrocarbons residual with catalyzer 99% - aromatics (btx) and ydrocarbons starting from c3hn > 99,5% - carbon monoxide (co), hydrogen (h2 ) ethylene and propylene > 99,9% OUTPUT PRESSURE - 0 - 10 bar/0 - 145 psi ± 3% AIR INPUT CHARACTERISTICS - Particulate ≤ 0,01 mm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ -15° C dew point ATP ELECTRICAL SUPPLY - ZeroAir 5 115 Vac ±10% 60 Hz 180W 230 Vac ±10% 50 Hz 180W ZeroAir 20 115 Vac ±10% 60 Hz 450 W 230 Vac ±10% 50 Hz 450 W INDEX OF PROTECTION - IP20 OPERATING TEMPERATURE - 5°C - 35°C (41°F - 95°F) ENVIRONMENTAL HUMIDITY - max 80% without condensation MAX ALTITUDE - 2000 m asl DIMENSIONS - Height: 35 cm/13.8” Width: 20 cm/7.9” Depth: 16 cm/6.3” WEIGHT - ZeroAir 5 7 kg/15 lbs ZeroAir 20 9 kg/20 lbs PNEUMATIC CONNECTIONS - Compressed air inlet: G 1/8” female Purified air output: G 1/8” female
