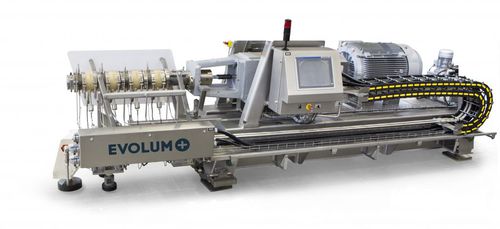

High durability extrusion twin-screw EVOLUM+

anti-corrosionwear-resistantself-cleaning

Overview
Clextral supplies turnkey industrial production lines based on co‑rotating twin‑screw extrusion, including extruders, dryers and ancillary equipment for food and non‑food applications. The offer covers EVOLUM+ (enhanced range), EVOLUM (value range), BC historic models, co‑extrusion kits, preconditioners, vent stuffers, density control systems and multiple dryer concepts.

EVOLUM+ range
EVOLUM+ twin‑screw extruders increase volumetric capacity and optimise the volume/energy ratio to raise throughput while maintaining process control and hygienic construction.

• Higher throughput: up to +40% production volume versus standard EVOLUM through improved volumetric capacity.
• Advanced Thermal Control (ATC): proprietary self‑learning thermal regulation improving response time and process stability (claimed improvement figures available) and enabling energy savings.
• Hygienic design: stainless steel or stainless/painted steel construction, open profiles for full access and easy cleaning.

EVOLUM extruders (Evolum™)
Value range of co‑rotating twin‑screw extruders covering screw diameters from 25 to 145 mm and offering broad process flexibility.

• Large operating window with multiple torque and screw speed options.
• Accurate thermal control via improved Heat Transfer Management.
• Homothetic designs for direct scale‑up between models and patented hydraulic barrel opening for quick access.
• PLC Fitsys+ V2: multilingual interface, data export, automatic start/stop and remote assistance.

BC Extruder
Historic, robust models (BC45, BC72, BC92, BC160) with extensive installed base for standard industrial applications.

Co‑extrusion kit
Modular kit for new lines or retrofit, including front plate & die, filling pump skid and forming crimper.

• Co‑extrude sweet or savoury fillings with recipe management.
• Compact, CIP‑washable design and adjustable parameters for varied filling viscosities.
• Outputs: 2–8 volumetric pump outputs and 4–12 die outputs (configurable).

Preconditioners
Used to heat, hydrate and mix dry raw materials before extrusion and to dose pretreated product into the extruder to optimise capacity and product features.

• Evolum Preconditioner: volumes 25–3000 L; outputs 50–20 000 kg/h; ergonomic and safe operation.
• EVOLUM+ Preconditioner: capacities 75–4500 L; 100–23 000 kg/h (dry mix); features Advanced Filling Control (AFC) for increased filling ratio and reversible AFC for fast emptying.

Vent stuffer
Accessory for twin‑screw extruders that evacuates vapor while retaining extruded material via a degassing screw to prevent material escape.

Density Control System (DCS)
DCS (vent stuffer plus regulating system) enables automated, precise control of pellet density and expansion degree using steam addition or vacuum generation.

• Automated density adjustment across a wide range (example: ~350 g/L to ~750 g/L).
• Reduced product moisture and ability to produce sinking or floating aquatic feeds.
• Fines recovery to preconditioner when required.

Drying
Drying is a critical stage in extrusion lines. Clextral provides three dryer concepts to meet product quality, energy efficiency and hygiene requirements.

EVOLUM Belt Dryer
Compact belt dryer for directly expanded products with optimised heat exchange and gentle handling. Typical snack capacities: 300, 600, 1200 kg/h.

EVOLUM® Rotante Dryer
Rotary dryer with Archimedes‑screw linear conveyance for homogeneous drying, improved energy performance and simplified maintenance.

EVOLUM+ Dryer
Modular dryer with enhanced aeraulics and high‑performance insulation; stainless steel hygienic construction suitable for washdown and easy access for maintenance.

Coating skids (sweet & salty)
Complete coating solutions including syrup preparation and metering, coating drum and spraying systems with touchscreen recipe management (BRIX, viscosity, temperature) and appropriate sizing for uniform dispersion.

Technical specifications

• Brand: Clextral
• Model / range: EVOLUM+ (EVOLUM / BC referenced)
• Screw diameters: 25–145 mm (Evolum range)
• EVOLUM+ performance: up to +40% production vs standard EVOLUM
• ATC: self‑learning thermal control to improve stability and reduce energy use
• Preconditioner volumes/outputs: Evolum 25–3000 L / 50–20 000 kg/h; EVOLUM+ 75–4500 L / 100–23 000 kg/h
• EVOLUM Belt Dryer capacities (snack ref.): 300 / 600 / 1200 kg/h
• Co‑extrusion kit: 2–8 volumetric pump outputs; 4–12 die outputs; CIP washable
• Control: PLC Fitsys+ V2 (multilingual, data export, automatic start/stop, remote assistance)
• Design focus: hygienic stainless steel construction, easy access for cleaning, modular layouts for production lines
