Screening bucket CBR 18
for loadersfor telehandlersfor excavators

screening bucket
screening bucket
screening bucket
screening bucket
screening bucket
Add to favorites
Compare this product


for loaders, for telehandlers, for excavators

2.6 m³ (91.82 ft³)

Carrier weight

Max.: 24 t (26 us ton)

Min.: 16 t (18 us ton)

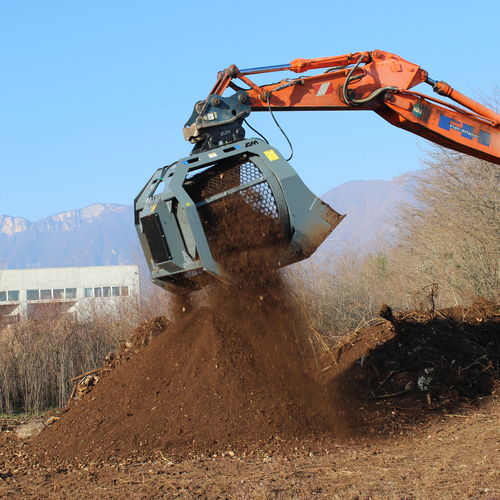

The screening bucket mod. CBR 18, basket system with interchangeable grids and choice of mesh. Among the options: excavation teeth, basket cleaning brush. No drainage line needed. Internal engine and hydraulics protected to prevent breakage due to unintentional impacts. It can be applied to excavators, wheel loaders, telescopic handlers. Excavator: 16-24 ton Mouth size: 1750 mm Weight: 1650 kg SAE Capability: 2,60 m³ Pressure: 150 bar Flow: 60/80 l/min Rotation: 10/30 rpm
