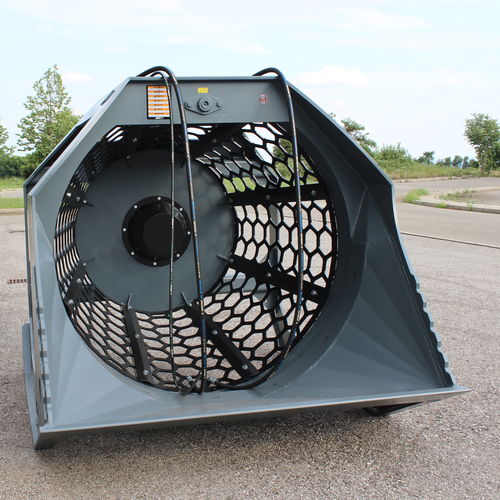

Screening bucket CBR 23
for loadersfor excavators

screening bucket
screening bucket
screening bucket
screening bucket
Add to favorites
Compare this product


Characteristics

Type
screening
Load-bearing
for loaders, for excavators
Capacity

4.7 m³ (165.98 ft³)

Carrier weight

Min.: 32 t (35 us ton)

Max.: 50 t (55 us ton)

Description

The screening bucket mod. CBR 20, with an easily interchangeable basket (grid system) and choice of mesh. Among the options: excavation teeth, basket cleaning brush. No drainage line needed. Internal engine and hydraulics protected to prevent breakage due to unintentional impacts. Excavator: 32-50 ton Mouth size: 2250 mm Weight: 3500 kg SAE Capability: 4,7 m³ Pressure: 220 bar Flow: 100/130 l/min Rotation: 10/30 rpm
