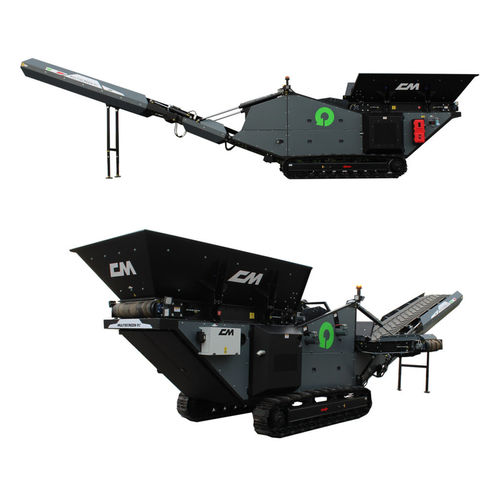

Dry screening screener MULTISCREEN RC

wet screeningconstructionagricultural

Overview
MULTISCREEN RC by CM Srl is a radio-controlled mobile disc screener designed for on-site material selection and continuous separation. It combines a configurable 10-shaft disc deck, optimised discharge conveyors and a tracked undercarriage to process mixed, wet or difficult-to-screen materials directly on jobsites.

Key features

• Radio remote control: manage inlet conveyor speed, screening deck speed and inclination, open/close and speed of discharge conveyors; on-screen monitoring of machine status and fuel level.
• Configurable 10-shaft disc deck with interchangeable shafts and spacing options (16, 25, 40, 60 mm) to adjust screening size.
• Dedicated discharge conveyors for fine fraction and oversize for organised material handling.
• Tracked undercarriage for easy positioning on site; rubber track pads available as option.
• Automatic centralized greasing system for screening shafts and key components.

Advantages

• Processes a wide range of materials: gravel, soil, mixed soil, wet soil, humus, compost, coal, excavation materials, recycled aggregates and demolition debris.
• Enables direct on-site screening, reducing handling and intermediate transport.
• Reliable continuous separation of fines and oversize fractions.
• Remote operation improves operator safety and coordination.
• Discharge conveyors allow stockpile formation or direct loading of screened material.

Applications

• Recycling
• Quarries and mines
• Road construction
• Tunnels and confined sites
• Construction industry
• Landscape and agricultural maintenance
• Underground utilities

Product insights / Components

• Loading hopper: 3 m³ capacity; dimensions length 3,500 mm × width 2,300 mm to facilitate excavator loading and steady feed.
• Disc deck: 10-shaft configuration with replaceable shafts to adapt to jobsite needs.
• Interchangeable shaft spacing: 16 mm, 25 mm, 40 mm, 60 mm for selectable screening sizes.
• Engine: 74 HP Cummins Stage V (no AdBlue) optimized for continuous operation.
• Tracks: steel tracks, shoe width 300 mm; track gauge 2,950 mm; rubber pads optional.
• Fine conveyor: belt width 1,000 mm; discharge height up to 3,750 mm (Chevron belt).
• Oversize conveyor: belt width 800 mm; discharge height up to 1,800 mm.
• Fuel tank: 95 L capacity.
• Safety and service provisions: electrical panel, radiator and battery disconnect switch, provision for fire extinguisher, start-up display for real-time monitoring.

Options

• Watering kit with 600 L tank — pressure system with 12/24 V pump and sprayers.

How the disc screener works (summary)
Material is loaded into the hopper and fed to the rotating disc deck. Particles smaller than the disc spacing fall through as undersize (fine fraction) while larger particles are carried to the oversize conveyor. Disc spacing, rotor speed and deck inclination determine separation quality and productivity. Remote control allows the operator to adjust parameters from a safe distance.

Technical specifications

• Model: MULTISCREEN RC
• Loading hopper volume: 3 m³ (length 3,500 mm × width 2,300 mm)
• Disc deck: 10 shafts, interchangeable
• Available shaft spacing: 16 mm, 25 mm, 40 mm, 60 mm
• Engine: Cummins Stage V, 74 HP (no AdBlue)
• Fuel tank: 95 L
• Fine conveyor belt width: 1,000 mm; discharge height up to 3,750 mm
• Oversize conveyor belt width: 800 mm; discharge height up to 1,800 mm
• Tracks: steel, shoe width 300 mm; track gauge 2,950 mm (rubber pads optional)
• Automatic lubrication: centralized greasing system
• Remote control functions: inlet conveyor speed, deck speed and inclination, discharge conveyors open/close and speed, machine status display
