Sweeper bucket CBS series
for loadersfor skid steer loadersfor backhoe loaders

sweeper bucket
sweeper bucket
sweeper bucket
sweeper bucket
Add to favorites
Compare this product


for loaders, for skid steer loaders, for backhoe loaders, for telehandlers, for tractors
Other characteristics
for light materials, for mining, for compost
Bucket width

Min.: 1,050 mm (41 in)

Max.: 2,500 mm (98 in)


Min.: 260 l (68.68 gal)

Max.: 610 l (161.14 gal)

Bucket weight

Min.: 210 kg (462.97 lb)

Max.: 530 kg (1,168.45 lb)

Hydraulic pressure

Min.: 150 bar (2,175.57 psi)

Max.: 190 bar (2,755.72 psi)

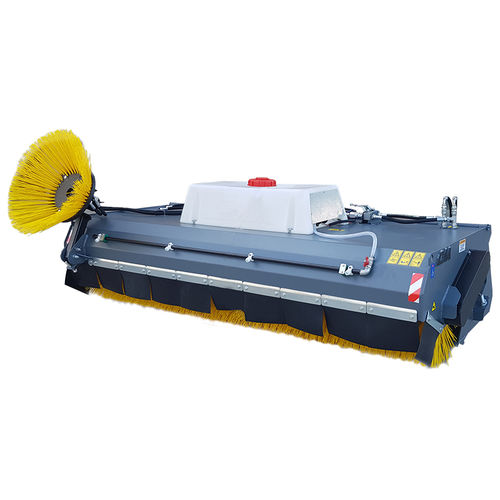

CBS | SWEEPING BUCKET The sweeper bucket CBS series is equipped with a collecting bucket positioned behind the operating machine with the polypropylene brushes roller increased on the front and is mainly indicated for road cleaning work, sidewalks or generally for heavy work. Applicable to all operating machines but especially ideal for mini skid steer loaders, telehandlers, wheel loaders and backhoe loaders. It is built in 9 models with working widths from 1 to 3 m. The structure is designed with high strength material, is equipped with side and front protections in sturdy rubber and is supplied with pressure-flow limiting valve, hydraulic motor and chain transmission. Thanks to the chain transmission system, the motor, positioned high, is protected both from dust and dirt, and from possible impacts while using the sweeper. OPTIONALS Side brush cleaning ø 600 mm. with indipendent hydraulic motor Mixed steel side brush cleaning ø 600 Steel side brush cleaning ø 600 Watering kit by falling with 100 lt. tank Watering kit by pressure with 12 V pump and sprayers, 100 lt. tank Watering kit by pressure for operating machines with own tank Hydraulic opening Hydraulic quick coupling kit Connector 8-14 Poles 12 V Steel mixture brush


CBS series
CBS series
