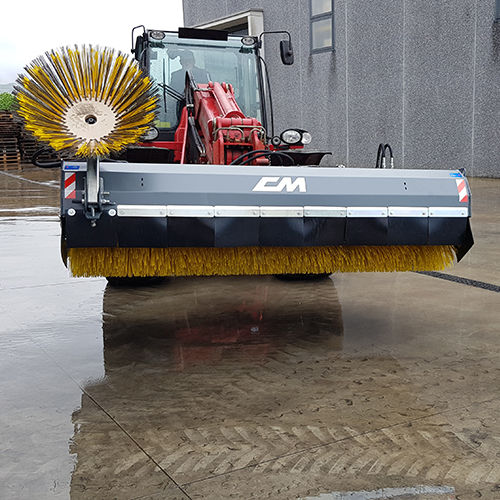

Sweeper bucket CBS 200

for loaders

The sweeping bucket CBS series is equipped with a collecting bucket positioned behind the operating machine with the polypropylene brushes roller increased on the front and is mainly indicated for road cleaning work, sidewalks or generally for heavy work. Applicable to all operating machines but especially ideal for mini skid steer loaders, telehandlers, wheel loaders and backhoe loaders. It is built in 9 models with working widths from 1 to 3 m. The structure is designed with high strength material, is equipped with side and front protections in sturdy rubber and is supplied with a pressure-flow limiting valve, hydraulic motor and chain transmission. Thanks to the chain transmission system, the motor, positioned high, is protected both from dust and dirt, and from possible impacts while using the sweeper. Sweeping bucket with a collection bucket, model CBS 200, working width 2000 mm, total width 2120 mm, weight 455 kg, capacity 500 l, required flow rate 60/75 l / min, pressure 175 bar, brushes diameter 600 mm.
