Sweeper bucket CBS 150
for loaders

sweeper bucket
sweeper bucket
Add to favorites
Compare this product


Characteristics

Type
sweeper
Load-bearing
for loaders
Bucket width

1,500 mm
(59 in)

Capacity

350 l
(92.46 gal)

Bucket weight

385 kg
(848.78 lb)

Hydraulic flow

60 l/min, 75 l/min
(15.85 us gal/min, 19.81 us gal/min)

Hydraulic pressure

175 bar
(2,538.16 psi)

Description

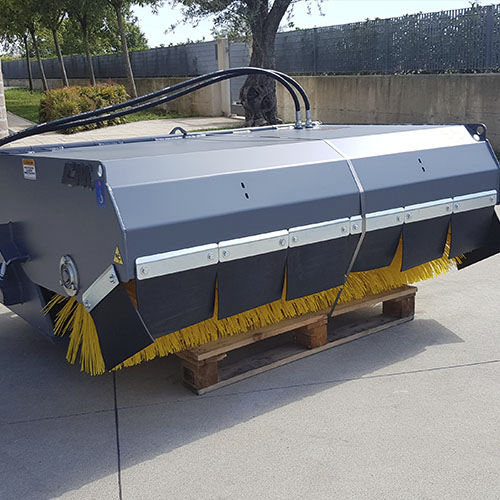

The sweeping bucket CBS series is equipped with a collecting bucket positioned behind the operating machine with the polypropylene brushes roller increased on the front and is mainly indicated for road cleaning work, sidewalks or generally for heavy work. Applicable to all operating machines but especially ideal for mini skid steer loaders, telehandlers, wheel loaders and backhoe loaders. It is built in 9 models with working widths from 1 to 3 m. The structure is designed with high strength material, is equipped with side and front protections in sturdy rubber and is supplied with a pressure-flow limiting valve, hydraulic motor and chain transmission. Thanks to the chain transmission system, the motor, positioned high, is protected both from dust and dirt, and from possible impacts while using the sweeper. Sweeping bucket with a collection bucket, model CBS 150, working width 1500 mm, total width 1620 mm, weight 385 kg, capacity 350 l, required flow rate 60/75 l / min, pressure 175 bar, brushes diameter 600 mm.

Catalogs

CBS series
CBS series
2 Pages
