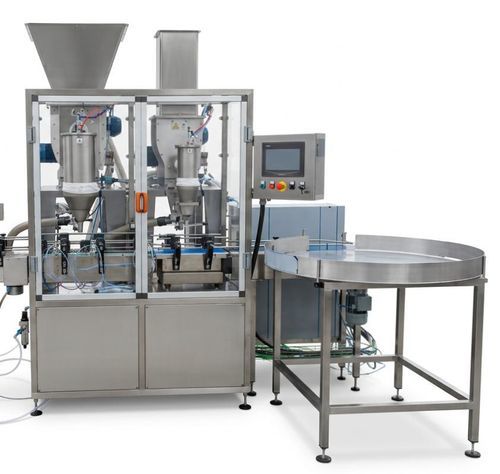

Poorly-flowing material dosing dispenser

powderscrewfor the food industry

PRESENTATION
We supply semi-automatic powder dosing lines for a wide range of powders, including poorly flowing and agglomerating products. Systems are configured according to product characteristics and can use horizontal auger (screw) units or vibrating-channel modules. Augers are fully stainless steel with variable shapes and geometries; vibrating channels are recommended for regular, precise dosing of free‑flowing, non‑hygroscopic powders. The supporting frame is sized to the number of dosing heads and container pitch. Operation and parameters (dispensing speed, dosing settings, wash cycle) are managed via an operator panel. Units are prepared for integration of extraction/suction systems and for connection to capping or labeling equipment.

DOSING UNITS

• Horizontal auger units: stainless steel, customizable shapes and geometries.
• Vibrating channel units: for regular and precise dosing of free‑flowing, non‑hygroscopic powders.

APPLICATION SECTORS

• Food industry
• Cosmetics
• Chemical industry

DIMENSIONS AND GENERAL SPECIFICATIONS
The support structure and clearances are dimensioned according to the selected dosing heads and container pitch. Machines are adaptable to different formats and support micro‑dosing as well as dosing into containers up to 25 kg depending on configuration.

CHARACTERISTICS / TECHNICAL SPECIFICATIONS

• Production speed: up to 600 pcs/h (dependent on format and operator handling).
• Container types: adaptable to various formats; micro‑dosing to containers up to 25 kg.
• Dosing technologies: horizontal auger (screw) units or vibrating channel modules.
• Materials: augers fully stainless steel; various shapes/geometries available.
• Vibrating channels: suitable for regular, precise dosing of smooth, non‑hygroscopic powders.
• Support structure: dimensioned per dosing heads and container pitch.
• Control: operator panel to set and modify operating parameters, dispensing speeds and washing cycle.
• Integration: prepared for extraction/suction systems; can be connected to capping and labeling lines.
• Suitable for powders with poor flowability and tendency to agglomerate, as well as for free‑flowing powders.
