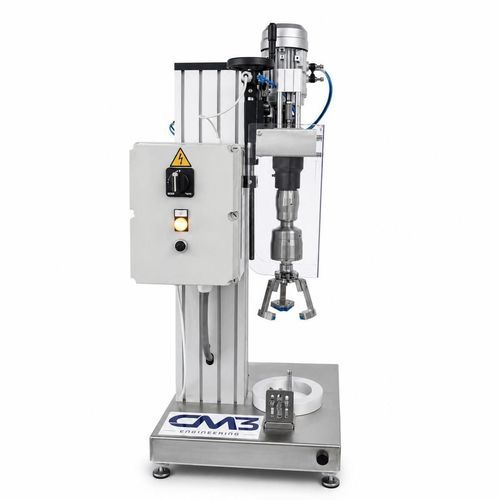

Electropneumatic capping machine

pneumaticmagneticelectronically controlled

Overview
Electropneumatic bench-top capper designed for screwing plastic screw caps including dispensers, flip-tops and spray caps. Compact format for manual feeding and integration at control stations.

Design
Drive with magnetic hysteresis clutch providing adjustable torque and a pneumatically controlled three-sector screwing head. Rotation speed set via inverter to match cap characteristics.

Gripping and tooling
Depending on cap format, tooling options include interchangeable three-sector rubber grippers sized by diameter, machined stainless-steel mandrels for externally knurled caps, or friction rubber for top gripping. Tooling is designed for quick change to reduce setup time.

Operation
The operator places the cap manually on the bottle neck and actuates the two-hand control to start the screwing cycle. Maintain pressure until cycle completion; releasing controls returns the head to start position. Two-hand control ensures safe operation.

Application sectors

• Food
• Cosmetics
• Chemicals

Technical specifications

• Type: Electropneumatic bench-top capper for plastic screw caps (dispenser, flip-top, spray)
• Suitable caps: Dispenser, flip-top, spray caps
• Drive: Magnetic hysteresis clutch with adjustable torque
• Screwing head: Pneumatically controlled three-sector head
• Speed control: Inverter for rotation speed adjustment
• Gripping options: Interchangeable three-sector rubber grippers (by diameter); machined stainless-steel mandrels for externally knurled caps; friction rubber for top grip
• Operation: Manual cap placement; two-hand control to start cycle
• Cycle return: Head returns automatically to start position when controls released
• Materials: Stainless steel mandrels; rubber grippers
• Customization: Tooling interchangeable to match cap diameters and profiles
