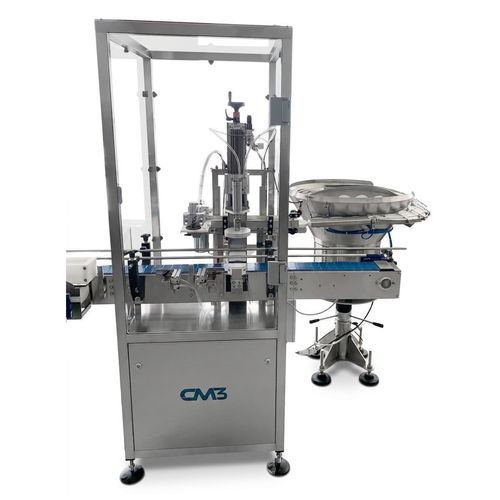

Monobloc capping machine

in-linedigitallinear vibrating

Presentation
The MONOBLOCK capping machine is designed for integration into automatic dosing lines or for standalone capping operations. The frame is stainless steel with polycarbonate guards to protect the operator from moving parts. The system includes a pick & place station (suction cup or clamp depending on cap type), a tightening station with digital pressure regulator and a vibrating cap feeder, custom-designed to application requirements. The control panel allows recipe storage, adjustment of handling parameters and remote assistance.

Sectors of application

• Food industry
• Cosmetics
• Chemicals

Types of caps

• Screw plastic caps
• Crown caps
• Cosmetic caps
• Pharmaceutical caps
• ROOP caps
• Twist-off caps
• Pressure plugs

Production speed
Up to 1,800 pcs/h in continuous operation

Plant dimensions (version with tables)
Width: 2800 mm
Height: 1785 mm
Depth: 1700 mm
Power supply: 400V +N+T
Weight: approx. 350 kg

Options and features

• Pick & place station with suction cup or clamp grip
• Tightening station with digital pressure regulator
• Vibrating cap feeder, custom designed
• Rotating tables for loading or accumulation (optional)
• Motorisation and digital torque control (optional)
• Interchangeable spindles custom-made for each cap type (optional)
• Control panel with recipe storage, parameter adjustment and remote assistance

Technical specifications

• Construction: stainless steel frame with polycarbonate protection
• Max production speed: up to 1,800 pcs/h
• Cap compatibility: screw, crown, cosmetic, pharmaceutical, ROOP, twist-off, pressure plugs
• Power supply: 400V +N+T
• Machine dimensions (with tables): 2800 mm (W) x 1785 mm (H) x 1700 mm (D)
• Approx. weight: 350 kg
• Control: digital pressure regulator, recipe storage, parameter adjustment, remote assistance capability
