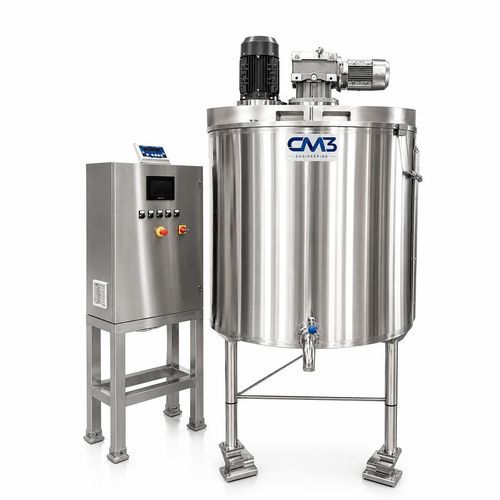

Mobile mixer batchfor liquidsfor the food industry
Add to favorites
Compare this product
Characteristics
- Configuration
- mobile
- Batch/continuous
- batch
- Product type
- for liquids
- Applications
- for the food industry, for the chemical industry, for the cosmetics industry
- Other characteristics
- stainless steel, weighing, thermo-regulated, touch pad control, floor-standing
- Capacity
Min.: 50 l
(13.21 gal)Max.: 5,000 l
(1,320.86 gal)
Description
Product overview
CM3 Engineering manufactures industrial liquid mixers for product preparation prior to filling. Systems are available as anchor or propeller mixers and can be customized for capacity, heating, insulation and control requirements. Accessories for integration with dosing, transfer and capping units are available.
Mixer types
Anchor mixers
Capacities (L)
200 | 300 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 5000
Versions
Construction
Structure in AISI 304 stainless steel. Parts in contact with the product can be supplied in AISI 316 or 316L on request. Assembly on feet or wheels.
Propeller mixers
Capacities (L)
200 | 300 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 5000
Versions
Controls & automation
Additional options
Available models (examples)
(other models available on request)
Application sectors
Technical specifications
CM3 Engineering manufactures industrial liquid mixers for product preparation prior to filling. Systems are available as anchor or propeller mixers and can be customized for capacity, heating, insulation and control requirements. Accessories for integration with dosing, transfer and capping units are available.
Mixer types
- Anchor mixers
- Propeller mixers
- Transfer pumps
Anchor mixers
Capacities (L)
200 | 300 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 5000
Versions
- Standard
- Heated (up to 60°C)
- Heated and insulated (for temperatures above 60°C)
- Load-cell structure
Construction
Structure in AISI 304 stainless steel. Parts in contact with the product can be supplied in AISI 316 or 316L on request. Assembly on feet or wheels.
Propeller mixers
Capacities (L)
200 | 300 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 5000
Versions
- Standard
- Heated (up to 60°C)
- Heated and insulated (for temperatures above 60°C)
- Load-cell structure
Controls & automation
- PLC control with user-friendly touch screen
- Storage of up to 99 recipes
- Electronic volume controls and option for load-cell installation for dosing verification
Additional options
- Dedicated transfer pumps for product movement between mixers
- Custom paddle configurations according to product viscosity
- Insulation and heating systems for temperature control
- Mobile or fixed mounting
Available models (examples)
- 50 L
- 100 L
- 200 L
- 300 L
- 400 L
- 500 L
(other models available on request)
Application sectors
- Food
- Cosmetic
- Chemical
Technical specifications
- Materials: standard AISI 304 stainless steel; AISI 316 / 316L on request for product-contact parts
- Mixing types: anchor and propeller (selection according to product viscosity)
- Capacities: examples from 50 L to 500 L; anchor/propeller variants available from 200 L to 5000 L
- Versions: Standard; Heated (up to 60°C); Heated and insulated (>60°C); Load-cell structure
- Assembly: on feet or on wheels
- Transfer: dedicated transfer pumps
- Controls: PLC, touch screen, storage up to 99 recipes
- Optional: electronic volume controls, installation on load-cells
- Suitable for: food, cosmetic and chemical industries
