Conveyor roller CPC 1238 series

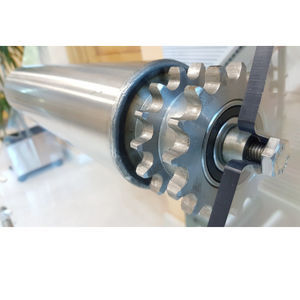

Light series handling rollers mainly used for the transport of light weight goods. CPC 1238D / RV • Ø30X1.5 metal tube made of natural, zinc-plated or AISI 304 stainless steel. • Ø8 and Ø10 metal shafts, in calibrated natural steel F212 or AISI 303 stainless steel. • Thermoplastic head, precision chrome nickel or stainless steel bearings. • Z12 3/8 ”double pinion with precision bearing in carbon or stainless steel. • Thermoplastic cones Ø smaller 34mm, Ø bigger 73.4mm. • Maximum load capacity 30 Kg / roll. CPC 1238MD / M16 • Ø30X1.5 metal tube made of natural, zinc-plated or AISI 304 stainless steel. • Ø8 and Ø10 metal shafts, in calibrated natural steel F212 or AISI 303 stainless steel. • Metal head embossing stamping bearings or row of chrome-nickel balls. • Z12 3/8 ”double pinion with precision bearing in carbon or stainless steel. • Thermoplastic cones Ø smaller 34mm, Ø bigger 73.4mm. • Maximum load capacity 30 Kg / roll. CPC 1238MD / T00-T01 • Ø30X1.5 metal tube made of natural, zinc-plated or AISI 304 stainless steel. • Ø8 and Ø10 metal shafts, in calibrated natural steel F212 or AISI 303 stainless steel. • Thermoplastic ball row heads in natural steel (T00) or stainless steel (T01). • Z12 3/8 ”double pinion with precision bearing in carbon or stainless steel. • Thermoplastic cones Ø smaller 34mm, Ø bigger 73.4mm. • Maximum load capacity 20 Kg / roll
