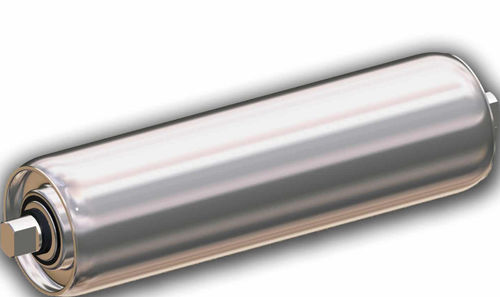

Gravity conveyor roller CM1200 / M30 – M30-2stainless steelsteelgalvanized
Add to favorites
Compare this product
Characteristics
- Drive mechanism
- gravity
- Material
- steel, stainless steel, galvanized
- Diameter
50 mm, 60 mm, 80 mm
(1.969 in, 2.362 in, 3.15 in)
Description
Medium Gravity Maintenance
Metal tube Ø50×1.5, Ø60×1.5, Ø60×2, Ø80×2 made of natural steel, zinc plated / galvanized or AISI 304 stainless steel.
Ø8 and Ø10, Ø12, Ø15 and 11mm hexagonal metal shafts, in calibrated natural steel F212 or AISI 303 stainless steel.
Zinc-plated metal heads with double row of balls, embedded (M30, M30-2). Maximum load capacity 240 Kg / roll.
Rollers for gravity transport of medium loads, with thermoplastic heads with precision bearings or deep drawn metal heads, for maximum loads from 60 kg / roller (CM300), up to 300 kg / roller (CT1500)
