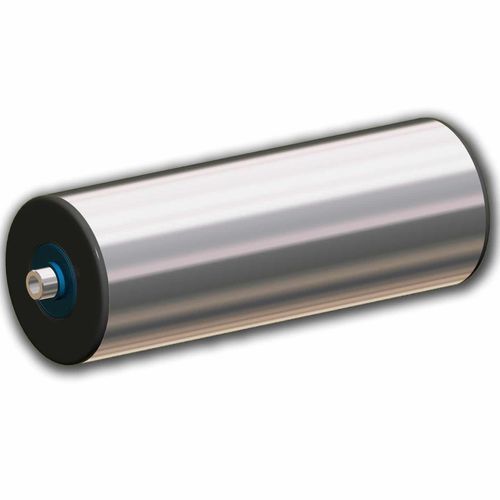

Gravity conveyor roller CT series

thermoplasticmetalsteel

Heavy series handling rollers mainly used for the transportation of heavy goods. • Ø80×2 metal tube made of natural, zinc-plated or AISI 304 stainless steel. • Ø15 metal shaft in calibrated natural steel F212 or AISI 303 stainless steel. • Thermoplastic heads with precision bearing 6202 2RS (T40). • Maximum load capacity 300Kg / roll. Roller for the gravity transport of medium loads, with thermoplastic heads with precision bearings or deep drawn metal heads, for maximum loads up to 300 kg / roller. • Ø80×3 and Ø89×3 metal tube made of natural, zinc-plated or AISI 304 stainless steel. • Ø20 metal shaft in calibrated natural steel F212 or AISI 303 stainless steel. • Thermoplastic heads with precision bearing 6204 2RS (T44). • Maximum load capacity 300Kg / roll. Rollers for gravity transport of medium loads, with thermoplastic heads with precision bearings or deep drawn metal heads, for maximum loads from 60 kg / roller (CM300), up to 300 kg / roller (CT1500)
