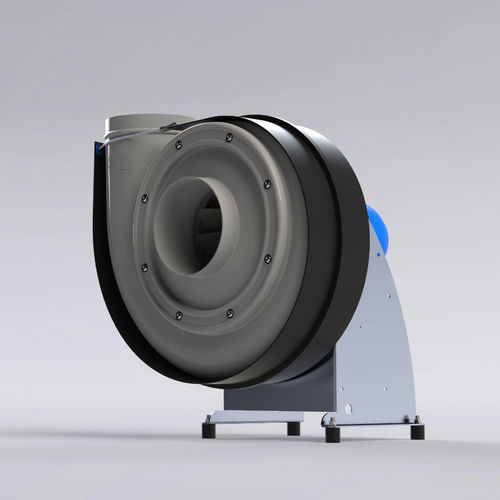

Radial fan CMVpro® 125-400

coolingEC motorwith asynchronous motor

The Colasit CMVpro® plastic radial fan sets new standards in efficiency of plastic fans and achieves a noticeable reduction in your operating cost, even compared to the best competitors. In addition to a total mechanical efficiency of up to 83 %, the CMVpro® complies with all current and future environmental standards. Construction – One stage, suction on one side – Direct drive – CE marking Characteristics Volume flow min. 150 m3/h to max. 13500 m3/h Static pressure min. 50 Pa to max. 2400 Pa Efficiency (tot. mech.) max. 83% Inlet and outlet Ø 125, 160, 200, 250, 315, 400 mm Housing – Available in PPs, PPs-el, PVDF – Self-supporting shell construction – Vacuum formed (twin sheet) – 6 outlet positions for clockwise or counterclockwise rotation – Inlet cover can easily be removed to clean the fan – Splinter protection for maximum safety Impeller – Available in PPs, PPs-el, PVDF – Injection molded – Backward-curved impeller blades with extrusion construction – Transmission of force via fully plastic-coated aluminum hub – Adapter for simple impeller mounting Support – Available in stainless steel or galvanized – Sturdy sheet metal construction Drive – Direct drive: Impeller mounted directly on motor shaft – Motor: Asynchronous motor PM motor (required with FC) EC motor (with integrated FC) Hub seal – Standard seal (minimal hub-to-casing gap) Optional – Felt ring seal – Back-plated impeller (negative pressure in area of hub)
