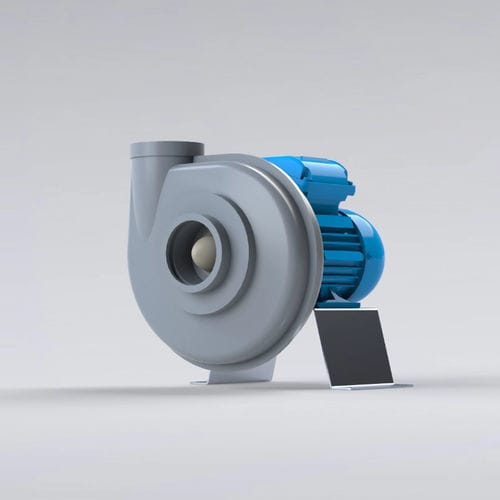

Radial fan CCV 75

ventilationsuctionwith asynchronous motor

The Colasit CCV small fan can be installed quickly and easily in any suitable location. It weighs less than 10 kg. The Inlet and outlet nozzles are suitable for DN 75 pipe connections (standard pipe). Construction – One stage, suction on one side – Direct drive – CE marking Characteristics Static pressure min. 50 Pa to max. 900 Pa Efficiency (tot. mech.) max. 44% Housing – Available in PPs, PPs-el – Self-supporting shell construction – Vacuum formed – 4 different outlet positions for counterclockwise rotation Impeller – Available in PPs, PPs-el – Injection molded – Transmission of force via fully plastic-coated aluminum hub – Adapter for simple impeller mounting Support – Available in stainless steel – Sturdy sheet metal construction Ex protection – Version available in ATEX Zone 1/2 Drive – Direct drive: Impeller mounted directly on motor shaft – Motor: Asynchronous motor
