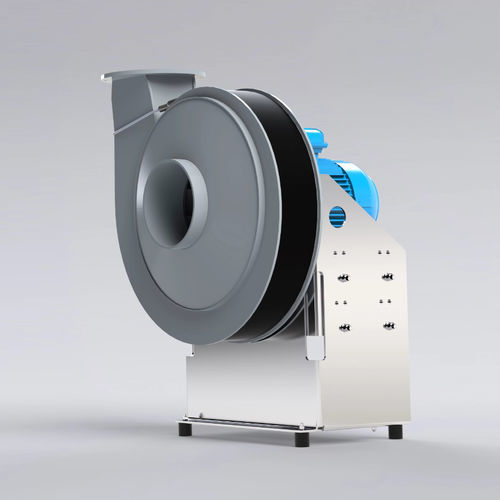

Radial fan CHVS 63-250

suctionwith asynchronous motorPP

The Colasit CHVS radial fan is a high-pressure fan for the highest demands with pressures of up to 7000 Pa and volumes of up to 5300 m³/h. This very reliable and stable plastic fan is available in various materials and drive concepts, which ensures that it meets any requirements. Furthermore, this versatile radial fan is suitable for a wide range of applications and different aggressive media, including those for hazardous areas in ATEX zone 1 and 2. Construction – One stage, suction on one side – Direct drive or V-belt drive – CE marking Characteristics Static pressure min. 450 Pa to max. 7000 Pa Efficiency (tot. mech.) max. 82% Housing – Available in PE, PP, PPs, PPs-el, PVDF, PVC – Self-supporting welded construction – 6 outlet positions for clockwise or counterclockwise rotation – Splinter protection for maximum safety – Housing can easily be removed to clean the fan Impeller – Available in PPs, PPs-el, PVDF – Backward-curved impeller blades – - Transmission of force via positive fit Support – Available in stainless steel or galvanized – Sturdy sheet metal construction – - Maintenance-free flange bearing for version with V-belt drive Ex protection – Version available in ATEX Zone 1 / 2
