Magnetic field probe GAS3000

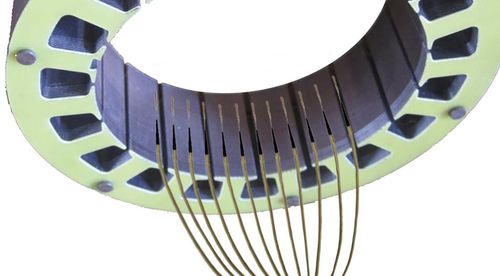

Probe Array of Magnetic Field Detection System GAS3000 is composed of smart Magnetic Field transmitters GSP300 Series, digital RS485 bus, control station, computer and PC software, which satisfies the academic and factory production line need, and has the function of fully automated bus digital signal transmission, computer controlled data acquisition speed and processing and drawing all kinds of curve chart. The GAS3000 uses the industrial instrumentation common RS485 bus, the small size probe is easy to array, the control station can be connected to the magnetic field 8-128 smart transmitters, and datas are collected by bus to import directly into the computer. It costs less when customers use the GSP3000 for It’s not necessary to buy the gaussmeter hosts. To speed up the acquisition speed, each smart transmitter can store 3000 data, and the speed of storing data up to per 1ms. The longest length of cable is 1000 meters and Coliy will produce the wireless Magnetic Field transmitter in the future to benefit the customers. Besides, Probe Array of Magnetic Field Detection System GAS3000 can be customized to satisfy customers’ special need according to different requirement. Application: Probe Array of Magnetic Field Detection System GAS3000 can be applied in various magnetic field measurements, like all types of spatial variation of the magnetic field to synchronize detection, the magnetic multi-points and multi-face concurrent measurement, the impulsed magnetic field and gradient magnetic field distribution measurement. So the GSP3000 is very suitable for these applications: aerospace, scientific research, industrial inspection, etc.
