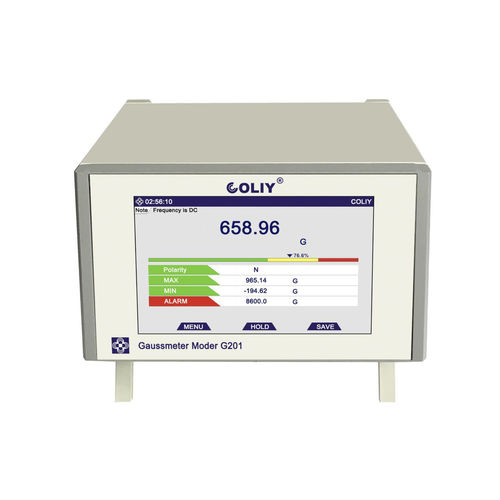

USB gaussmeter G201

digital

COLIY Model G201 desktop single-axis hall gaussmeter provides advanced functionality and performance to meet the demanding needs of the industry. G201 is suitable for scientific research institutions, universities, laboratories, industry, manufacturing and other users. G201 Gaussmeter boasts with an industrial class 7 inches touch panel display that enables customers' instantaneous and simultaneous measurement results (Max/ Min/ Peak/ Hold/ Alarm/ Polarity, Magnetic Flux Density, and a Trend Graph etc.). In addition, G201 can be powered by a mobile power supply (5V) via a USB interface to meet the needs of outdoor measurement of magnetic fields. Gaussmeter G201 allows measurements up to 200kG (20T) with a basic accuracy of 0.2%, the resolution of 0.01 G (1pT), and the frequency response of DO 20kHz. G201 could be equipped with different kinds of Hall Probes: Standard Transverse Probe, Standard Axial Probe, Wide-range Probe (20T), Micro-axial Probe (Diameter <2mm). High-temperature Probe (s+200°C), Cryogénie Probe (£-269°C), Ultra-thin Probe (thickness of 0.5mm), and Température sensor-contained Probe. The température coefficient of ordinary probes (probes without température sensor) is 300ppm/*C, but température sensor-contained probes(probes with built-in température sensor) hâve the function of température compensation, so température sensor-contained probes are strongly recommended for better précision and stability when the température changes. Gaussmeter G201 has passed the CE certification and EMC (Electromagnetic Compatibility) test. Features Ergonomically designed GUI Operation System Colorful display style 7 inches color touch LCD
