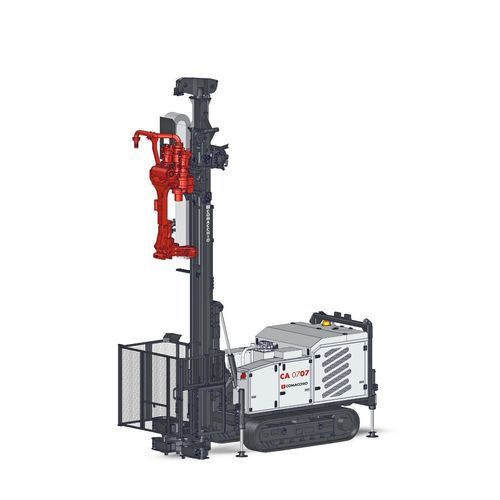

Geothermal drilling rig CA 0707

water wellcrawlerdown-the-hole

Product overview
The CA 0707 is a compact crawler-mounted drilling rig designed for water well and geothermal drilling in restricted-access and urban job sites. It delivers a 6,500 daN pullback capacity and is driven by a 75 kW diesel engine (Stage 5 / Tier 4f), combining reduced transport dimensions with drilling performance suitable for residential and small-to-medium diameter wells. The rig supports direct circulation and DTH drilling modes and can be fitted with optional accessories to match project requirements.

Key features

• Compact crawler-mounted rig for restricted-access and urban sites
• Suitable for water well and geothermal drilling
• Configured for direct circulation drilling and DTH applications
• Wide range of optional accessories available to match project requirements
• Designed for residential and small-to-medium diameter wells

Technical specifications (table)
Overall track width - EU: 1.400 mm - US: 4' 7"
Diesel engine power - EU: 75 kW - US: 102 HP
Emission standards - EU/US: Stage 5/Tier 4f
Retract force - EU: 6.500 daN - US: 14,613 lbs
Feed force - EU: 4.500 daN - US: 10,116 lbs
Feed stroke - EU: 3.500 mm - US: 11' 5"
Torque range - EU: 225 - 1.350 daNm - US: 1,660 - 9,957 lb*ft
Speed range - EU/US: 35 - 220 rpm
Clamping range - EU: 45 - 325 mm - US: 1" 3/4 - 1'
Winch 1st line pull - EU: 2.000 kg - US: 4,409 lbs
Weight range - EU: 6,5 - 7,5 t - US: 14,330 - 16,535 lbs

Model and technical specifications

• Model: CA 0707
• Type: crawler-mounted drilling rig for water wells and geothermal wells
• Engine power: 75 kW (102 HP)
• Emission level: Stage 5 / Tier 4f
• Retract (pullback) capacity: 6.500 daN (14,613 lbs)
• Feed force: 4.500 daN (10,116 lbs)
• Feed stroke: 3.500 mm (11' 5")
• Torque range: 225 - 1.350 daNm (1,660 - 9,957 lb*ft)
• Rotation speed range: 35 - 220 rpm
• Clamping range: 45 - 325 mm (1" 3/4 - 1')
• Winch 1st line pull: 2.000 kg (4,409 lbs)
• Overall track width: 1.400 mm (4' 7")
• Weight range (machine): 6,5 - 7,5 t (14,330 - 16,535 lbs)
• Typical applications: restricted-access job sites, urban environments, residential wells, small-to-medium diameter wells
• Drilling modes supported: direct circulation drilling, DTH
