Water well drilling rig CA 1012

crawlerrotarydown-the-hole

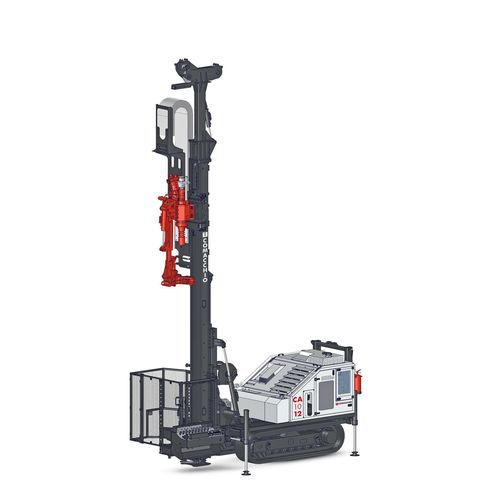

Overview The CA 1012 is a crawler-mounted water well drilling rig designed for contractors requiring a compact and versatile machine with increased pullback capacity for medium-depth drilling operations across varied ground conditions. Based on the same platform as the CA 1010, the rig is fitted with a more powerful mast delivering a 12 tonnes pullback capacity, enabling greater depths in both direct circulation rotary drilling and DTH drilling. The machine can be configured with application-specific accessories and customised solutions, including a range of pumps and optional winch layouts with second-layer pull-up systems to meet specific drilling and operational requirements.

Main selling points

• Compact crawler-mounted water well drilling rig for medium-depth operations
• Increased pullback capacity versus CA 1010 (12 tonnes retract force)
• Suitable for direct circulation rotary drilling and DTH drilling
• Modular configuration: selectable pumps, application-specific accessories and optional winch second-layer pull-up

Technical Specifications (table) Overall track width: 1.700 mm (EU) / 5' 6" (US)
Diesel engine power: 115 - 119 kW (EU) / 154 - 160 HP (US)
Emission standards: Stage 3A/Tier 3 - Stage 5/Tier 4f (EU/US)
Retract force: 12.000 daN (EU) / 26,977 lbs (US)
Feed force: 7.600 daN (EU) / 17,085 lbs (US)
Feed stroke: 4.000 mm (EU) / 13' 1" (US)
Torque range: 350 - 1.700 daNm (EU) / 2,581 - 12,539 lb*ft (US)
Speed range: 35 - 290 rpm (EU/US)
Clamping range: 45 - 365 mm (EU) / 1" 3/4 - 1' 2" (US)
Winch 1st line pull: 4.500 kg (EU) / 9,921 lbs (US)
Weight range: 11 - 12 t (EU) / 24,251 - 26,455 lbs (US)

Characteristics / spécifications techniques

• Model: CA 1012
• Type: Crawler-mounted water well drilling rig
• Retract (pullback) capacity: 12.000 daN (≈ 12 tonnes)
• Feed force / stroke: 7.600 daN / 4.000 mm
• Torque range: 350 - 1.700 daNm
• Rotational speed range: 35 - 290 rpm
• Engine power (typical): 115 - 119 kW (EU) / 154 - 160 HP (US)
• Emission compliance: Stage 3A / Stage 5 (Tier 3 - Tier 4f)
• Winch 1st line pull (typical): 4.500 kg
• Weight (operational/configurable): approx. 11 - 12 t
• Clamping range: 45 - 365 mm
• Applications: water wells, direct circulation rotary drilling, DTH drilling; configurable with pumps, winches and application-specific accessories
