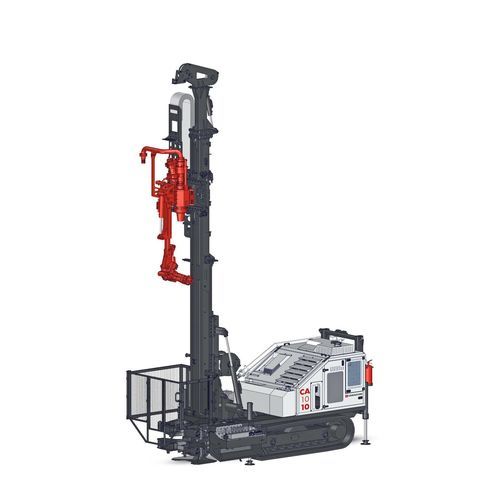

Water well drilling rig CA 1010

crawlerrotarydown-the-hole

Overview
The CA 1010 is a crawler-mounted water well drilling rig designed for contractors requiring a versatile machine for medium-depth drilling operations. With a pullback capacity of 9 tonnes, the rig is suitable for direct circulation rotary drilling and DTH drilling across a wide range of ground conditions. Its modular hydraulic circuits enable application-specific accessories and customized configurations, including a variety of pumps and optional winch setups with second-layer pull-up systems to meet specific drilling and operational needs.

Main features

• Crawler-mounted water well drilling rig for medium-depth operations
• Pullback capacity: 9 tonnes (suitable for multiple drilling applications)
• Compatible with direct circulation rotary drilling and DTH drilling
• Advanced modular hydraulic circuits to accept application-specific accessories
• Optional winch configurations with second-layer pull-up systems and a wide range of pumps

Technical specifications

• Overall track width: 1.700 mm / 5' 6"
• Diesel engine power: 115 - 119 kW / 154 - 160 HP
• Emission standards: Stage 3A/Tier 3 - Stage 5/Tier 4f
• Retract force: 9.000 daN / 20,233 lbs
• Feed force: 6.500 daN / 14,613 lbs
• Feed stroke: 4.000 mm / 13' 1"
• Torque range: 350 - 1.700 daNm / 2,581 - 12,539 lb*ft
• Speed range: 35 - 290 rpm
• Clamping range: 45 - 365 mm / 1" 3/4 - 1' 2"
• Winch 1st line pull: 4.500 kg / 9,921 lbs
• Weight range: 10 - 12 t / 22,046 - 26,455 lbs
