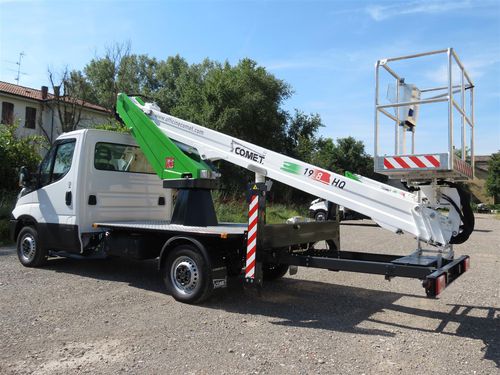

Truck-mounted telescopic boom lift 19 | 2 | 7 (8.5) HQ

hydraulicfor constructionoutdoor

Telescopic aerial platforms represent the ideal solution for reaching significant heights with precision and stability. Thanks to their rigid telescopic boom, these platforms enable linear movements both vertically and horizontally, making them particularly suitable for working at height over large surfaces or in the presence of obstacles. Officine Comet offers a complete range of telescopic aerial platforms designed to ensure high performance, safety and reliability in every operating environment. Widely used in industrial, construction and installation sectors, these platforms provide excellent lifting capacity and adapt perfectly to even the most demanding working conditions. NEW EUROSFILO 19 | 2 | 7 (8.5) HQ IN SHAPE: Working height: 19 mt Basket floor: 17 mt Max. lateral outreach: 8,5 mt (with 120 kg in the basket) Max. basket capacity: 200 kg Hydraulic outriggers: no. 4 Rotation: 360° continuous Controls: 100% hydraulic low pressure Minimum GVW: 3.5 ton TECHNICAL DESCRIPTION OF STANDARD FEATURE: Aerial platform made of high strength steel for boom maximum rigidity and maximum safety while working. The subframe with the aim to couple the platform with truck chassis. Hydraulic oil tank in easy to reach position to check and restore the oil level. Stability guaranteed by No.4 outriggers H+H without extension, each pair is made by two hydraulic jacks with double effect valve connected to the main hydraulic circuit. Double purpose turret for boom support and rotation. One hydraulic engine coupled with one reducer allows 360° continuous rotation on fifth wheel. One rotating joint, assembled inside the turret, allows movements without hose twisting. The telescopic boom is made of 3 elements (1 fixed + 2 telescopic extensions). Hoses and pipes are positioned inside the boom structure for maximum protection against damages or accidental fall of tools, etc. The telescopic boom allows vertical and horizontal movements. The basket is made to support and protect the operators. The aerial platform can be moved by means of controls positioned on the basket. 100% hydraulic controls with proportional system in low pressure (25 BAR only) in the basket to allow gradual and accurate movements. The hydraulic system in low pressure guarantees a long-lasting life to the platform with maintenance costs reduced at minimum. The steel structure and the booms are made of high strength steel to grant great stability to the whole platform. Lateral outreach up to 7m with 200kg (2 pers.) in the basket and lateral outreach up to 8.5m with 120kg (1 pers.)
