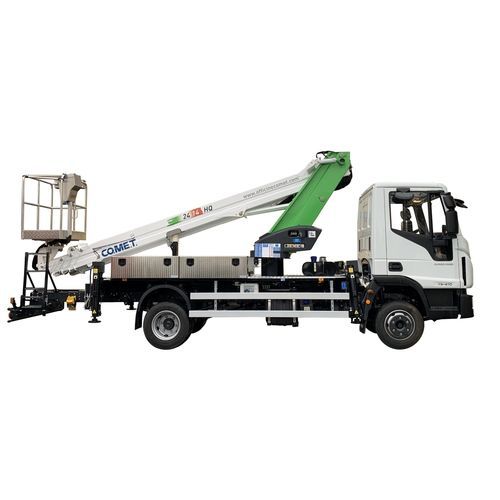

Fixed lift platform NEW EUROSFILO 24 | 2 | 12 (14) HQ 4S

truck-mountedhydraulicfor construction

The New Eurosfilo 24 | 2 | 12 (14) HQ 4S aerial platform is the ideal solution for working safely at a height of up to 24 meters with an outreach of 12 or 14 meters horizontally. - WORKING HEIGHT: 24 m - MAX. LATERAL OUTREACH: 12 – 14 m - BASKET FLOOR: 22 m - MAX. BASKET CAPACITY: 230 Kg – 2 persons - HYDRAULIC OUTRIGGERS: n.4 - ROTATION: 360° continuous - CONTROLS: 100% HYDRAULIC LOW PRESSURE - MINIMUM GVW: PTT 6 ton Aerial platform made of high strength steel for boom maximum rigidity and maximum safety while working. - The subframe with the aim to couple the platform with truck chassis. - Hydraulic oil tank in easy to reach position to check and restore the oil level. - Stability guaranteed by No.4 outriggers, each pair is made by two hydraulic jacks with double effect valve connected to the main hydraulic circuit. - Double purpose turret for boom support and rotation. One hydraulic engine coupled with one reducer allows 360° continuous rotation on fifth wheel. One rotating joint, assembled inside the turret, allows movements without hose twisting. - The telescopic boom is made of 4 elements (1 fixed + 3 telescopic extensions). Hoses and pipes are positioned inside the boom structure for maximum protection against damages or accidental fall of tools, etc. The telescopic boom allows vertical and horizontal movements. - The basket is made to support and protect the operators. The aerial platform can be moved by means of controls positioned on the basket. - 100% hydraulic controls with proportional system in low pressure (25 BAR only) in the basket to allow gradual and accurate movements. The hydraulic system in low pressure guarantees a long-lasting life to the platform with maintenance costs reduced at minimum. - The steel structure and the booms are made of high strength steel to grant great stability to the whole platform. - Moment limiting device: Lateral outreach up to 12m with 230kg (2 pers.) in the basket and lateral outreach up to 14m with 120kg (1 pers.)
