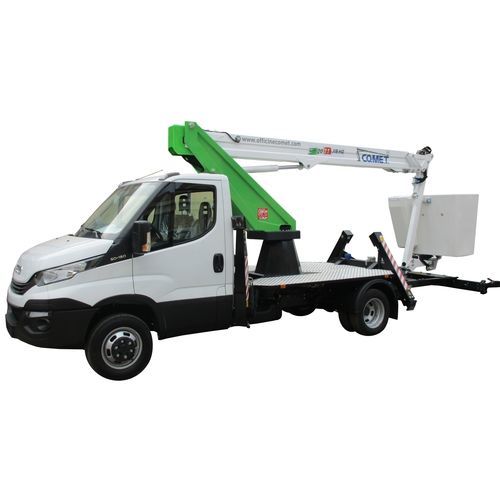

Fixed lift platform 20 | 2 | 9 (11) HQ JIB

truck-mountedelectro-hydraulicfor construction

The New Eurosfilo 20|2|9 (11) HQ JIB aerial platform is the ideal solution for working safely at a height of up to 20 meters with an outreach of 9 or 11 meters horizontally. - WORKING HEIGHT: 20 m - MAX. LATERAL OUTREACH: 9 – 11 m - BASKET FLOOR: 18 m - CAPACITY: 230 Kg – 2 persons - HYDRAULIC OUTRIGGERS: n.4 - ROTATION: 360° continuous - CONTROLS: 100% HYDRAULIC LOW PRESSURE - MINIMUM GVW: PTT 6 ton Aerial platform made of high strength steel for boom maximum rigidity and maximum safety while working. The subframe with the aim to couple the platform with truck chassis. Hydraulic oil tank in easy to reach position to check and restore the oil level. Stability guaranteed by No.4 outriggers, each pair is made by two hydraulic jacks with double effect valve connected to the main hydraulic circuit. Double purpose turret for boom support and rotation. One hydraulic engine coupled with one reducer allows 360° continuous rotation on fifth wheel. One rotating joint, assembled inside the turret, allows movements without hose twisting. The telescopic boom is made of 3 elements (1 fixed + 2 telescopic extensions). Hoses and pipes are positioned inside the boom structure for maximum protection against damages or accidental fall of tools, etc. The telescopic boom allows vertical and horizontal movements. Articulated boom (JIB) allows to clear obstacles in the working area. It is positioned at the end of the telescopic boom and gives the possibility even to work at a height in unreachable working position. The basket is made to support and protect the operators. The aerial platform can be moved by means of controls positioned on the basket. 100% hydraulic controls with proportional system in low pressure (25 BAR only) in the basket to allow gradual and accurate movements. The hydraulic system in low pressure guarantees a long-lasting life to the platform with maintenance costs reduced at minimum. The steel structure and the booms are made of high strength steel to grant great stability to the whole platform. Lateral outreach up to 9m with 230kg (2 pers.) in the basket and lateral outreach up to 11m with 120kg (1 pers.) Technical Description of Standard Features - CONTROLS: 100% hydraulic basket controls for maximum reliability and accuracy; emergency controls from the ground; fully hydraulic controls allow 2 simultaneous movements and provide more sensitivity in progressive and gradual maneuvers compared to electro-hydraulic controls; stop valves directly mounted on each hydraulic cylinder; control levers with automatic return in rest position; platform movements activated by levers on basket, turret (emergency only), and subframe (outriggers control board). - SAFETY SYSTEM: Interlock outriggers-boom; boom and outriggers block when PTO in cab is not engaged; load sensing device; emergency hand pump for all movements in case of main pump failure; hydraulic double-acting jacks with double effect safety valves; magnetic yellow flashing beacon on vehicle cab; warning light in truck cab for outriggers not completely down; general emergency stop push-button; thermal protective device for electric system; safety device to prevent starter connection if engine is on. - BASKET: Dimensions L1400xW700xH1100mm; hydraulic rotation 90° + 90°; 100% hydraulic system for 2 simultaneous movements; automatic leveling with independent hydraulic circuit; engine start & stop from basket; warning light to center boom when folding; 230V electric power tap in basket and turret; access bar with gravity closing system; feet protective device H15cm; 2 hooks for safety belts. - OUTRIGGERS: 4 outriggers with individual controls; 100% hydraulic independent and separate controls; hydraulic distributor with 4 levers for simultaneous or individual operation; consent warning lights for outriggers. - PUMP AND POWER TAKE-OFF: PTO features depend on vehicle type; warning light in cab for PTO engaged; gear type pump with 20lt/min flow at engine idle; hour counter in cab for maintenance scheduling. - BODY: Aluminum deck; ergonomic ladders on subframe; rear bumper; support for boom in rest position. - PAINTING: High quality painting for corrosion protection; standard color: WHITE/GREEN. - MOUNTING: Fixing to vehicle, hydraulic and electric connections, ballasting if necessary. - WARRANTY: 12 months from delivery date; includes use and maintenance manual, spare parts manual, hydraulic and electric diagrams. - OPTIONS (EXTRA COST): Emergency electropump 12/24V, additional magnetic yellow flashing beacon, 60W white adjustable working light, 12/24V electric power plug in basket, tool box, 4 outriggers pads 400x400x40mm, supports for pads, pre-arrangement for compressed air-water system, supplementary electric engine 230V, waterproof stainless steel side cabinet, aluminum side panels, rack for road signs, traffic cones support, wheel chock, safety belt, heavy duty subframe for 4×4 trucks, heavy duty subframe for trucks 6t-12t GVW, heavy duty subframe for trucks over 12t GVW, fiberglass basket insulated up to 5000V/over 5000V, longer aluminum/fiberglass basket, special color, hydraulic plug for high power tools, full range hydraulic tools, load sensing device, fire extinguisher, KITB options. Key Specifications / Technical Features - Working height: 20 m - Max. lateral outreach: 9 – 11 m - Basket floor: 18 m - Capacity: 230 kg (2 persons) - Hydraulic outriggers: 4 - Rotation: 360° continuous - Controls: 100% hydraulic, low pressure - Minimum GVW: 6 tons - Basket dimensions: L1400 x W700 x H1100 mm - Hydraulic system: proportional, low pressure (25 BAR) - Warranty: 12 months from delivery
