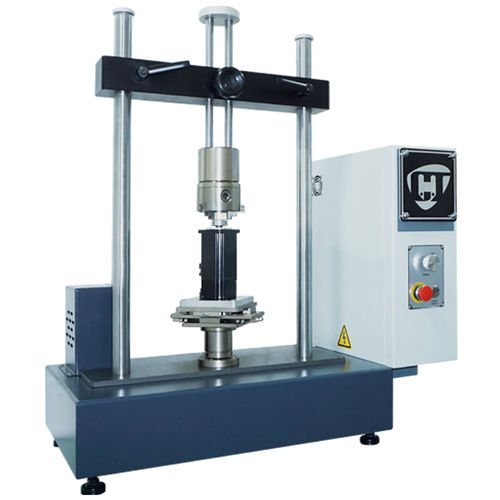

The machine can do clockwise and counterclockwise test analysis by dynamic method. It is included with software which can do analysis of Max. Static torsion, dynamic torsion, etc. It can do sample analysis in different speed. During the test, it will show the real time data of torsion graph and direction and record the sample torsion completely in the spin. According to different test sample, the clamping grips will be customized.
Different size sample can use the manual up/down function to adjust the test height.
Key Words: Torque Test, Motor Torque Test, Hand Tool Torque, Torque Tester, Torque Test Machine
Specifications
Capacity
0~10N-M
Test Speed
0.5~100 r/min
Test Range
Max. Width 345mm
Max. Height 400mm (not include the grips)
Unit
MN-m、kN-m、N-m、N-cm、mN-m、kgf-m、kgf-cm、kgf-mm、gf-cm、gf-mm、lbf-ft、lbf-in、ozf-in
Operation
Use software to do operate and analyze
Feature
1. Real time graph shows during the test.
2. User friendly test setting module. User can set up direction, speed, test end condition, etc.
3. Manual up/down function to adjust the test space.
Accessory
Specified grips for sample (additional charge fee based on your sample size)
Voltage
AC200~240V
Dimension
73cmX40cmX95cm
Weight
115kg
