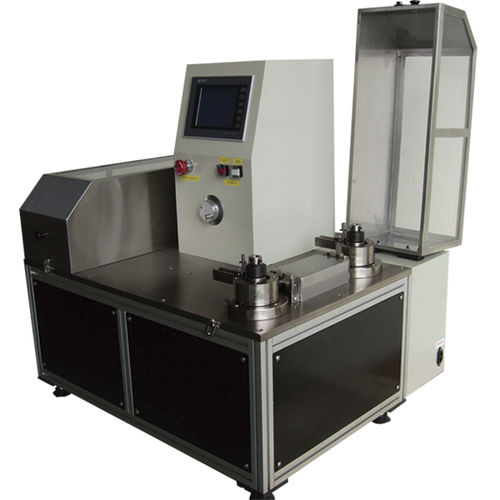

This test is for spring to do torsion life test, is capable of set clockwise and anti-clockwise direction, angle setting can more than 360 °, multi-angle and speed setting. It is equipped with auto stop function when specimen breaks and the protective cover to ensure the safety during operation.
Key Words: Spring, Spring Test, Fatigue Test, Spring Fatigue, Spring Fatigue Testing Machine, Spring Testing Machine, Spring Twist Test, Torsion Spring Fatigue, Spring Twist.
Specifications
Max. Torsion
9 N-m
Test Station
4
Max. Test Speed
0.1 ~ 100 rpm
Max. Test Times
9,999,999
Power
Single phase 220V
Dimension
80 × 70 × 82 cm
Weight
120 kg
