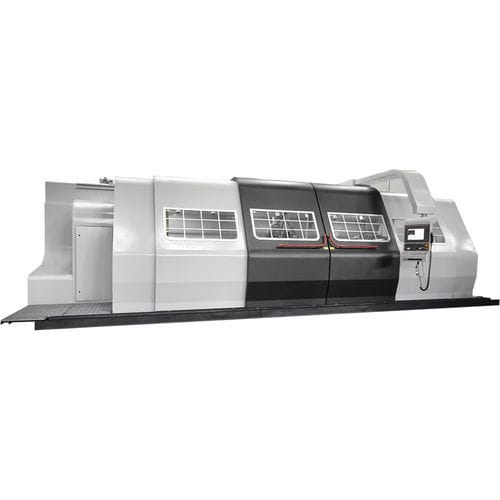

CNC lathe Titano evo

horizontalhigh-precisionpowerful

Conventional lathe with advanced conversational CNC, it stands out for its extremely simple programming, which is unique in the global market, with an exclusive control developed by Comev and Delectron for over 25 years. Fast, easy to use and reliable, powerful, perfect in production from the single piece to prototyping and in the small to medium series, built with care and top quality components. Already full of accessories, it is also suitable for advanced customisations to solve those particular problems where standard machines cannot be used. Head Extremely rigid monobloc casting, it houses the spindle assembled on high-precision bearings in order to obtain high-level gear precision and roughness. Casehardened and tempered spindle shaft, finely ground, oil lubricated with a special pump and flow sensor, housed in thermally stable casting, equipped with a hydraulically controlled 3-gear automatic gearbox. Axes X and Z Equipped with ISO 5 ground recirculating ball screws preloaded with 0 clearance and fitted on precision bearings, the relevant motors are aligned with said screws to ensure high dynamics and rigidity. The Titano series stands out for its acceleration, speed and power performance thanks to the special configuration of high torque motors. Lubrication of the screws and guides is guaranteed by a high-pressure pump with multi-point distribution and dosing valves to ensure even distribution of the oil and low contamination of the coolant. All power supply cables of the various motors and devices are entirely protected by sheathing having IP 67 protection rating.
