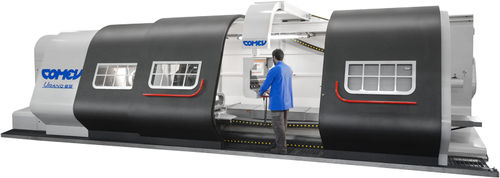

CNC lathe Urano evo

horizontalfor heavy-duty machininghigh-precision

Conventional lathe with advanced conversational CNC, it stands out for its extremely simple programming, which is unique in the global market, with an exclusive control developed by Comev and Delectron for over 25 years. Although large in size, it is fast, easy to use and reliable, powerful, perfect in production from the single piece to prototyping and in the small to medium series, built with care and top quality components. Already full of accessories, it is also suitable for advanced customisations to solve those particular problems where standard machines cannot be used. Extremely solid machine with 5 sliding guides, designed for heavy-duty machining operations on forged or particularly demanding materials. Head Extremely rigid monobloc casting, it houses the spindle assembled on high-precision bearings in order to obtain high-level gear precision and roughness. Casehardened and tempered spindle shaft, finely ground, oil lubricated with a special pump and flow sensor, housed in thermally stable casting, equipped with a hydraulically controlled 3-gear automatic gearbox. The special configuration of the transmission makes it possible to have a constant power range that evenly covers the entire speed range. Axes X and Z Equipped with ISO 5 ground recirculating ball screws preloaded with 0 clearance and fitted on precision bearings, the relevant motors are aligned with said screws to ensure high dynamics and rigidity. The Urano series stands out for its acceleration, speed and power performance thanks to the special configuration of the high torque motors.
