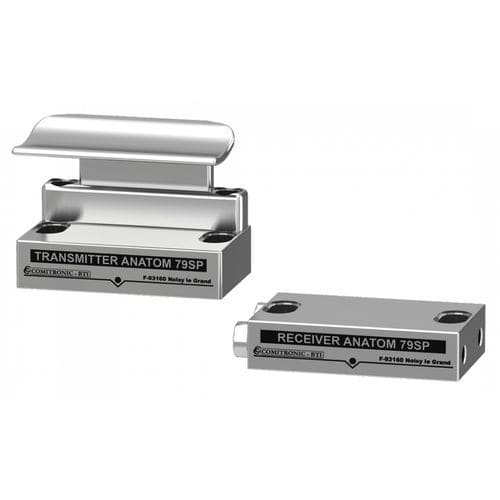

Safety switch with stainless steel handle
Position control for doors / casings on hazardous machinery
Contactless coded electronic sensor
Connectors / Wiring compatible with most hardware
Suitable for grooved profiles
Level of performance with AWAX controller: up to PL = e
Safety category: up to 4 with an AWAX controller
• Time before dangerous failure: MTTFd = 100 years
• Max. activation distance: 8 mm, 2 mm hysteresis
• Safety contacts/diagnostics: 2 x NO 0.8A/24V redundant and
• 1 x 250mA PNP contact
• Detection encoding: mono-code inviolable
• Indicator: 1 LED indicating code recognition and 1 LED indicating code absence
• Reset: automatic
• Attachment: 4 tamper-proof M4 screws (optional ref: BH4). Suitable for grooved profiles. Screw caps provided.
• Mounting position: 1
• Material: INOX 316L mirror polished
• Electrical connection: 2 x 50cm cords with M12 connector Water resistance: IP 69K
• Temperature: -30°C to +70°C.
• Marking: laser engraving with mechanical punching of the serial number for permanent traceability
