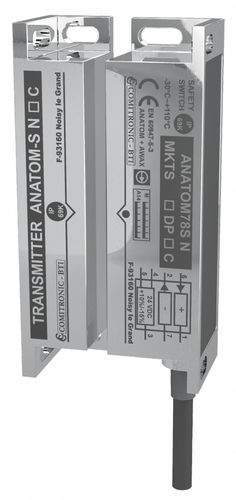

Stainless steel non-contact safety Switch 316L
Position control for doors / casings on hazardous machinery
Contactless coded electronic sensor
Total safety management with an AWAX controller
High temperature : -40 °C à +125 °C
Level of performance with AWAX controller: up to PL = e
Safety category: up to 4 with an AWAX controller
• Time before dangerous failure: MTTFd = 100 years
• Max. activation distance: 10 mm, 2 mm hysteresis
• Safety contacts/diagnostics: 2 x NO 1A/24V redundant and
• 1 x 250mA PNP contact
• Detection encoding: mono-code inviolable
• Reset: automatic
• Attachment: 4 tamper-proof M4 screws (optional ref: BH4)
• Mounting position: 2 (double wall brackets)
• Material: INOX 316L mirror polished
• Electrical connection: 220cm Ultra-soft silicone cord with M12 connector.
• Water resistance: IP69K (Switch) / IP67 (Connector)
• Extreme temperature: -40°C to +125°C
• Protective cover 316L stainless steel mirror polished "ref. + C" option
• Marking: laser engraving with mechanical punching of the serial number for permanent traceability
