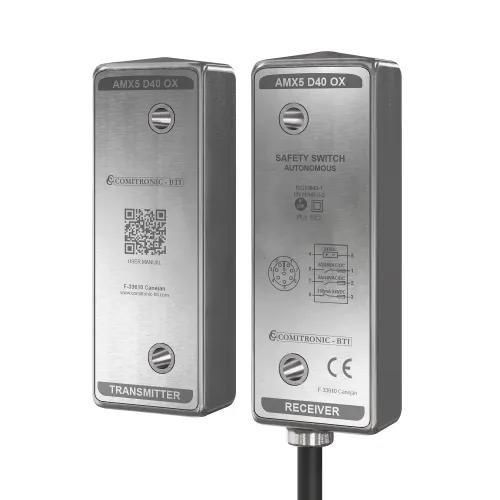

SIL2 safety sensor AMX5/D40

Product overview
The AMX5/D40 is a stand-alone safety switch designed for mounting on 40 mm profiles used in industrial guarding and access control. It provides tamper‑proof mono-code detection in a stainless steel hygienic housing for applications requiring integrated safety levels and permanent traceability.

Technical specifications
Performance level without external controller: PL=d
Performance level with AWAX controller: up to PL=e
Safety category without external controller: Category 3
Integrated safety level: SIL2
Cycles to dangerous failure: B10d = 2,000,000 at 2A
Max. activation distance: 10 mm (hysteresis 2 mm)
Detection coding: tamper-proof mono-code
Indication: LED for code recognition
Reset: automatic
Mounting: profile screws
Material: mirror-polished 316L stainless steel
Electrical connection: 50 cm cable with M12 connector (UL20549 PUR)
Ingress protection: IP69K
Operating temperature: -25 °C to +60 °C
Marking: INOX316L laser engraving with mechanical punching of the serial number for permanent traceability
Certificates: TÜV Rheinland 01/205/5238/12; Licence/Test Mark 968/EL 214.01/12

Safety contacts & diagnostics
Safety/diagnostic contacts: 2 x NO 2A/48V redundant and 1 x PNP 250 mA auxiliary
Diagnostic indication: LED code recognition
Reset mode: automatic

Technical features

• Model: AMX5/D40
• Designed for mounting on 40 mm profiles
• Performance level without external controller: PL=d
• Performance level with AWAX controller: up to PL=e
• Safety category without external controller: Category 3
• Integrated safety level: SIL2
• Activation distance: 10 mm (hysteresis 2 mm)
• Detection coding: tamper-proof mono-code
• Indication: LED for code recognition
• Reset: automatic
• Mounting: profile screws
• Material: mirror-polished 316L stainless steel
• Electrical connection: 50 cm cable with M12 connector (UL20549 PUR)
• Ingress protection: IP69K
• Operating temperature: -25 °C to +60 °C
• Marking: INOX316L laser engraving with mechanical punching of the serial number
• Certificates: TÜV Rheinland 01/205/5238/12; Licence/Test Mark 968/EL 214.01/12
• Safety/diagnostic contacts: 2 x NO 2A/48V redundant + 1 x PNP 250 mA auxiliary
