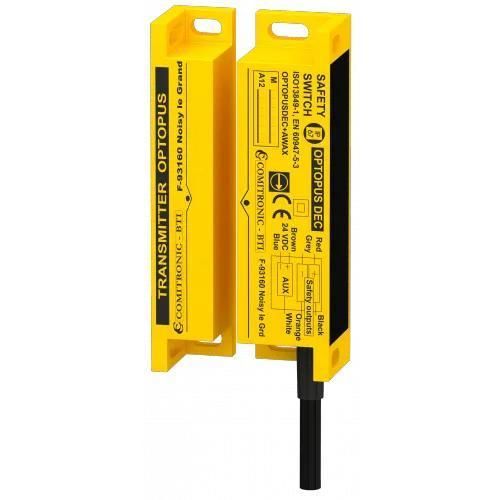

Radar safety sensor OPTOPUS DEC

Description
Position control for doors and guards on hazardous machinery. Contactless coded electronic sensor designed for integration with safety controllers. Complete safety management when used with an AWAX controller; supports high Performance Level when paired with AWAX. Cost-effective solution for multi-access applications requiring coded, tamper‑resistant monitoring.

Technical table

• Time before dangerous failure: MTTFd = 420 years
• Max. activation distance: 9 mm (1 mm hysteresis)
• Safety contacts/diagnostics: 2 x NO 200 mA max / 24 V (redundant) + 1 x 250 mA PNP contact
• Detection encoding: mono-code inviolable
• Indicator: LED for code recognition
• Reset: automatic
• Attachment: 4 tamper-proof M3 screws (optional ref: BH3)
• Mounting position: 2 (double wall brackets)
• Material: PA6 or INOX 316L mirror polished (ref. + OX)
• Electrical connection: 3, 6, 12 m cable (UL2464 PVC) or 50 cm cord with M12 connector (UL20549 PUR) (ref. + MKT)
• Ingress protection: IP67
• Operating temperature: -20 °C to +60 °C
• Marking: Pad printing + serial no. for traceability

Available versions & prices

• OPTOPUS DEC/3M — €48.00
• OPTOPUS DEC/6M — €65.00
• OPTOPUS DEC/12M — €80.00
• OPTOPUS DEC/MKT — €88.00
• OPTOPUS DEC OX/3M — €108.00
• OPTOPUS DEC OX/6M — €121.00
• OPTOPUS DEC OX/12M — €131.00
• OPTOPUS DEC OX/MKT — €147.00

Technical specifications

• MTTFd: 420 years
• Max. activation distance: 9 mm (1 mm hysteresis)
• Safety contacts/diagnostics: 2 x NO 200 mA max / 24 V redundant; 1 x 250 mA PNP contact
• Detection encoding: mono-code inviolable
• Indicator: LED for code recognition
• Reset: automatic
• Attachment: 4 tamper‑proof M3 screws (optional ref: BH3)
• Mounting position: 2 (double wall brackets)
• Material: PA6 or INOX 316L mirror polished
• Electrical connection: cables 3/6/12 m (UL2464 PVC) or 50 cm cord with M12 connector (UL20549 PUR)
• Ingress protection: IP67
• Operating temperature: -20 °C to +60 °C
• Marking: Pad printing + serial number for traceability
