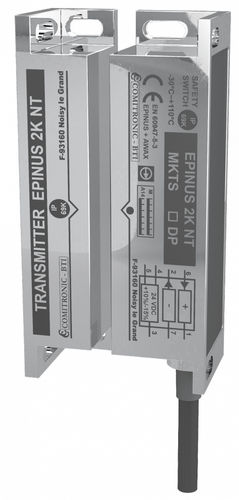

Safety switch EPINUS 2K NT MKTS

single-poleIP69Kdoor

Position control for doors / casings on dangerous machinery with magnetic holding devices 20 N integrated handle magnetic door holding High temperature and silicone cable Contactless coded electronic sensor Level of performance with AWAX controller: up to PL = e • Safety category: up to 4 with an AWAX controller • Time before dangerous failure: MTTFd = 100 years • Max. activation distance: 3 mm, 1 mm hysteresis • Holding Force: transmitter + receiver in contact = 20N • Safety contacts/diagnostics: 2 x NO 0.8A/24V redundant and 1 x PNP 250mA • Detection encoding: mono-code inviolable • Reset: automatic • Housing mount: 4 tamper-proof M4 screws (optional ref: BH4) • Handle assembly: M8 screw (optional handle) • Mounting position: 2 (double wall brackets) • Material: INOX 316L mirror polished • Electrical connection: 50cm Ultra-soft silicone cord with M12 connector. • Water resistance: IP 69K • Extreme temperature: -40°C to +125°C • Marking: laser engraving with mechanical punching of the serial number for permanent traceability
