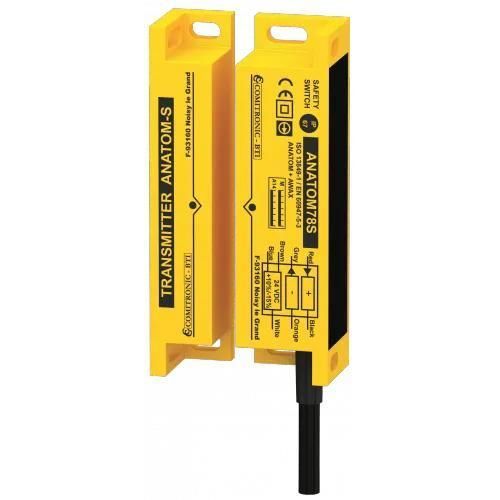

Harsh environment safety sensor ANATOM series

Product description
Position monitoring for doors and casings on hazardous machinery. Contactless coded electronic sensor designed for non-autonomous operation in conjunction with an AWAX controller. Low-cost solution for multi-access applications while enabling high safety performance when paired with an AWAX controller (up to PL = e).

Technical data
Time before dangerous failure: MTTFd = 334 years
Maximum activation distance: 10 mm (2 mm hysteresis)
Safety outputs / diagnostics: 2 x NO (250 mA max) redundant 24 V / 1 x PNP contact 250 mA
Detection encoding: mono-code, tamper-proof
Indicator: LED indicates code recognition
Reset: automatic
Attachment: 4 tamper-proof M4 screws (optional ref. BH4)
Mounting positions: version-dependent (see variants)
Materials: PA6, INOX316L (stainless steel) or polycarbonate (PC) depending on variant
Electrical connection: fixed cables (3, 6, 12 m) or cords with M12 connector (50 cm, 130 cm) or M12 metal
Ingress protection: IP67 / IP68 (PA6, PC) or IP69K with stainless steel (new generation)
Operating temperature: -25°C to +60°C
Marking / certification: serial number by pad printing or laser engraving; UL 508 / C22.2 no.14 C-UL-US listed 34CB (file E214209)
Note: not applicable for MKT and M12 versions.

The differences between the products in the ANATOM range

• ANATOM6S
• ANATOM6S-PLC
• ANATOM78S
• ANATOM98S
• ANATOM78S-485

Characteristics / technical specifications

• Function: Position control for doors/casings on hazardous machinery
• Technology: Contactless coded electronic sensor (mono-code, tamper-proof)
• Safety outputs: 2 x NO (250 mA max) redundant + 1 x PNP 250 mA
• Activation distance: 10 mm with 2 mm hysteresis
• MTTFd: 334 years
• Connection options: fixed cables (3 / 6 / 12 m) or cords with M12 connector (50 cm / 130 cm) or M12 metal
• Materials: PA6, INOX316L (stainless steel) or polycarbonate (PC)
• Ingress protection: IP67 / IP68 (PA6, PC) or IP69K (stainless steel new generation)
• Operating temperature: -25°C to +60°C
• Attachment: 4 tamper-proof M4 screws (optional BH4)
• Marking / traceability: serial number by pad printing or laser engraving; UL / C-UL-US listing
