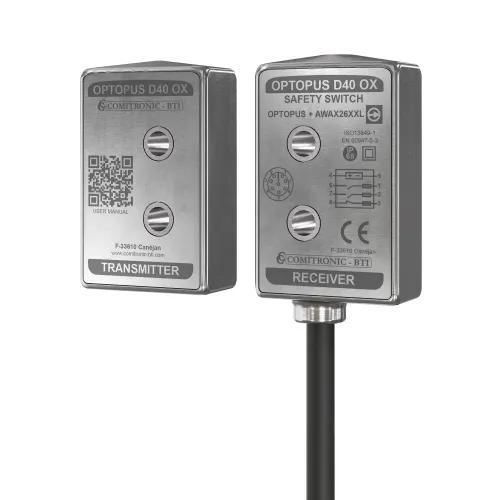

Safety sensor for pharmaceutical applications OPTOPUSDEC/D40

for harsh environments

Description
Non-contact coded electronic sensor to monitor the position of miniature doors and guards on hazardous machinery. Designed to work with the AWAX controller for complete safety management. Suitable as an economical solution for multi-access applications when integrated with AWAX.

Applications

• Position monitoring of small access doors, casings and guards on industrial machines
• Multi-access protection systems where a central safety controller (AWAX) manages interlocks
• Environments requiring hygienic stainless mounting (INOX 316L) and high ingress protection

Performance and safety
When used with the AWAX controller, the device enables performance level up to PL=e and safety category up to 4. The sensor provides coded single-code detection and tamper-proof recognition, with LED code indication and automatic reset.

Technical specifications

• Time before dangerous failure: MTTFd = 420 years
• Maximum activation distance: 9 mm (Hysteresis 1 mm)
• Safety/diagnostic contacts: 2 x NO 200 mA max / 24 V (redundant) + 1 x PNP 250 mA
• Detection coding: Single code tamper-proof
• Indication: LED for code recognition
• Reset: automatic
• Mounting: screw on profile (for 40 mm profile)
• Material: Polished mirror INOX 316L
• Electrical connection: 50 cm cord with M12 connector (UL20549 PUR)
• Sealing: IP69K
• Operating temperature: -20 °C to +60 °C
• Marking: Laser engraving
