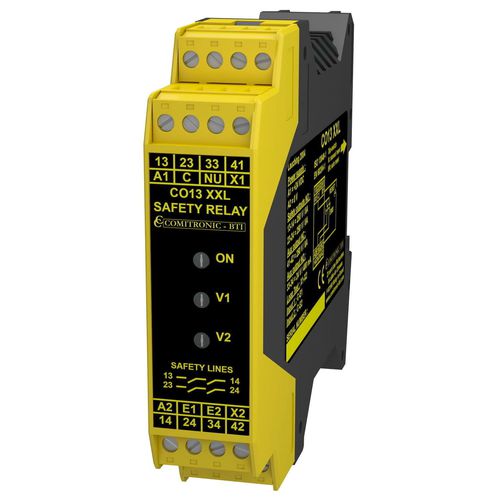

Emergency stop safety relay CO13XXL1 NO2 NO1 NC
Add to favorites
Compare this product
Characteristics
- Applications
- emergency stop
- Contact configuration
- 2 NO, 1 NO, 1 NC
- Norms
- SIL
- Mounting
- DIN rail
- Number of channels
- dual-channel, single-channel
- Supply voltage
- 250VAC
- Reset
- automatic reset, manual reset
- Other characteristics
- compact, configurable, with LED indicator, IP20, with fault indication
- Tripping current
8 A
- Trigger voltage
250 V
Description
Control of emergency stops
Safety management in a compact 22.5 mm format
Mono or two-channel with wiring. "Low consumption" Inputs
Removable terminals
Performance level with AWAX controller: PL = d
Safety category: 3 (two-channel)
Safety Integrity Level: SIL 2
Time before dangerous failure: MTTFd = 240 years
Cycle before dangerous failure: B10d=100,000 at 5A
Risk duration: 20 ms max.
Cable severing protection: yes (opening of safety lines)
Safety contacts/diagnostics: 2x NO 8A/250V redundant / 1x NF 8A/250V parallel redundant + 1x NO static 400 mA
Indicators: 3 LEDs for diagnostics
Reset: configurable by dip-switch (SR=Automatic, N=manual)
Mounting: symmetrical DIN 35mm rail on DIN 50022
Mounting: IP 20 electrical box
Electrical connection: Maximum 14 AWG (2.08 mm²) / 250V minimum
Temperature: -20°C to +60°C
