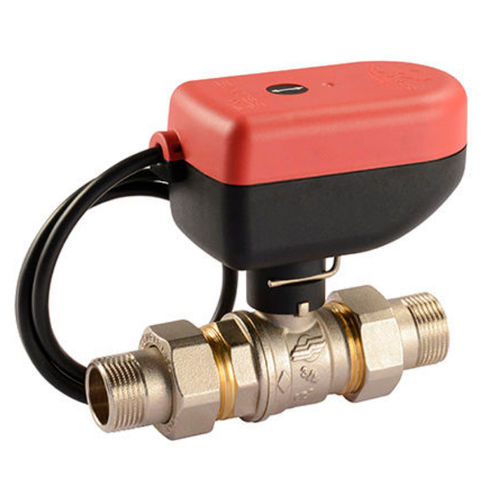

Motor-driven valve SINTESI-SR2221 series
ballelectrically-actuatedshut-off

motor-driven valve
motor-driven valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
electrically-actuated
Function
shut-off
Media
for water
Body
male-male, brass
Applications
heating, sanitary, actuator
Number of channels
2-way
Other characteristics
motor-driven
DN

Min.: 15 mm
(0.591 in)

Max.: 25 mm
(0.984 in)

20 mm
(0.787 in)

Temperature

Min.: 5 °C
(41 °F)

Max.: 50 °C
(122 °F)

Description

SINTESI motorised valve – 2 way MM BRASS HEATING / COOLING / SANITARY WATER ON-OFF functioning, with 1 extra free micro switch on opening 2 points control actuator with relay Class protection: IP54 Operating time: 45 sec for 90° rotation – 8Nm 2-way MM BRASS ball valve with tangs, full bore Fast push connection
