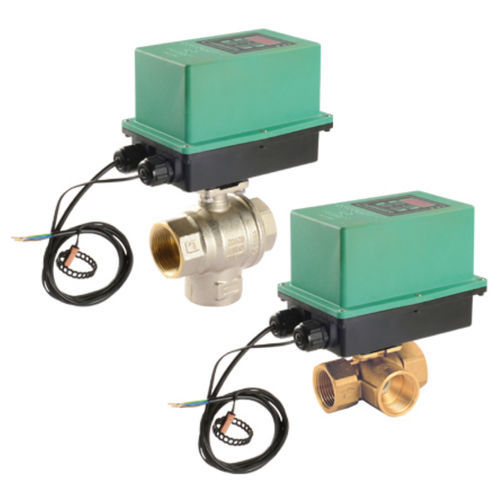

Ball valve COMPAMIX series
electrically-operatedcontrolIP67

ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
electrically-operated
Function
control
Body
IP67, brass
Applications
heating
Number of channels
3-way
DN

32 mm, 40 mm, 50 mm
(1.26 in, 1.575 in, 1.969 in)

Pressure

Min.: 3.5 bar
(50.8 psi)

Max.: 10 bar
(145 psi)

Description

DOMESTIC HOT WATER / UNDERFLOOR HEATING / REGULATION IN GENERAL Mixing thermoregulating actuator with electronics onboard Class protection IP67 Semiconductor temperature sensor 3-way FFF BRASS ball valve, full bore Diamix and Compamix thermoregulating/mixing motorized valves operate thanks to a built-in electronics which allows the direct programming of the servocontrol. They are mainly used when it is necessary to maintain a fluid at a constant température raging from -15 and +85°C. regardless of the inlet and outlet température when water is required. The desired température is directly set on the mixer by a push-button panel and the relevant values are shown on the display with an accuracy of ±1 °C. According to the signal recerved from the température sensor. the microprocessor sends a modulating signal which régulâtes the valve opening and closing. Note: for a proper operation, there should always be a closcd hydraullc circuit ensurlng a flow on the mlxlng valve by means of a clrculator.
